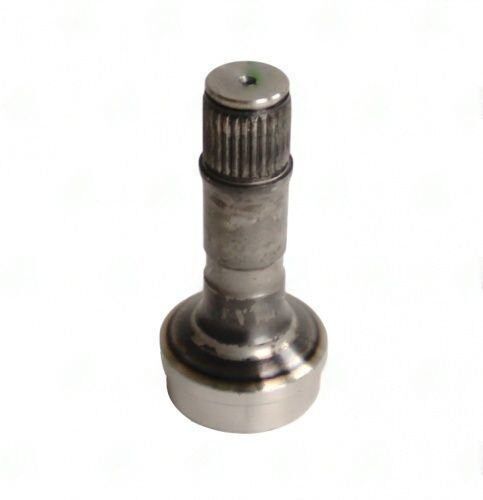

3142-1081 – Stub & Midship Shaft – 28 X 1.188 Splines – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$70.96
Description
The 3142-1081 Stub & Midship Shaft is a critical component in your driveline assembly, specifically designed to work seamlessly with the 3152-1081. This shaft features 28 X 1.188 splines, ensuring a robust connection that can handle the torque demands of your application. With a butt diameter of 2.344 inches and a tube diameter wall of 2.500 X 0.083 inches, this shaft is built to withstand the rigors of performance and heavy-duty use.
When installing the 3142-1081, it’s essential to pay attention to the critical speed limits dictated by its length and wall thickness. The splines length measures 945 inches, and the end-to-weld length is 4.625 inches, making precise measurements crucial for optimal performance. This shaft is engineered to maintain balance and minimize vibration, which is vital for the longevity of your driveline components.
- Ensure proper phasing marks are aligned during installation.
- Check runout to avoid vibrations that could lead to premature failure.
- Torque bolts to the manufacturer’s specifications for secure connections.
- Balance the assembly if any vibrations are detected after installation.
- Verify compatibility with 3152-1081 for best results.
In summary, the 3142-1081 Stub & Midship Shaft is not just a part; it’s a vital link in your vehicle’s performance chain. Trust this component to deliver the reliability and strength you need in your driveline setup.
| Butt dia | 2.344 |
|---|---|
| End to weld | 4.625 |
| Notes | Used with 3152-1081 |
| Partn number | 3142-1081 |
| Remaining stock | >10 |
| Splines count dia | 28 X 1.188 |
| Splines length | 945 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | CVJ |
