3142-107 – Stub & Midship Shaft – 26 X 1.1100 Splines – Butt Dia 1.844″ – Tube Dia Wall 2.000X0.083
$70.98
Description

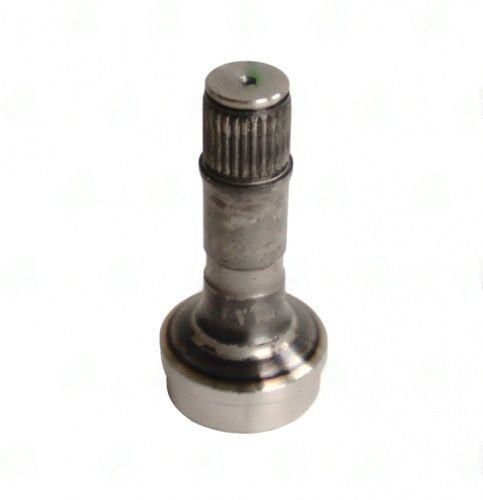

The 3142-107 Stub & Midship Shaft is engineered specifically for Ford CVJ applications, featuring a critical spline count of 26 X 1.1100. This dimension is essential as it directly affects the torque transmission capabilities and compatibility with the associated components in the driveline. The spline design ensures a secure fit with the transmission output, which is crucial for maintaining load stability and reducing wear over time.
The butt diameter of 1.844 inches plays a significant role in how this shaft interacts with the surrounding components. A precise butt diameter ensures that the shaft fits snugly into the yoke, minimizing the risk of misalignment that can lead to premature failure. Additionally, the tube diameter of 2.000 inches and a wall thickness of 0.083 inches provide the necessary strength and rigidity to handle the torque loads typical in Ford CVJ applications.
Installation of the 3142-107 requires attention to detail. Here are some key points to consider:
- Verify the spline count and ensure it matches the transmission output.
- Check the runout before installation to prevent vibrations.
- Torque all fasteners to the manufacturer’s specifications.
- Inspect for proper phasing marks to maintain alignment.
With a spline length of 1.350 inches and an end-to-weld measurement of 5.000 inches, this shaft is designed to fit seamlessly into the driveline, ensuring efficient power transfer from the transmission to the differential. The 3142-107 Stub & Midship Shaft is a reliable choice for maintaining the integrity and performance of your Ford CVJ system.
| Butt dia | 1.844 |
|---|---|
| End to weld | 5.000 |
| Notes | Ford CVJ Stub |
| Partn number | 3142-107 |
| Remaining stock | >10 |
| Splines count dia | 26 X 1.1100 |
| Splines length | 1.350 |
| Tube dia | 2.000 |
| Tube wall | 0.083" |
| Style | CVJ |
