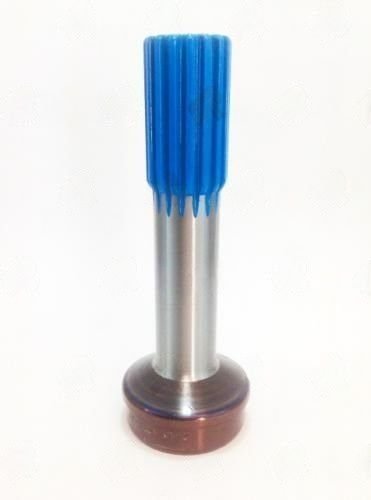

3140-1711 – Stub & Midship Shaft – 16 X 1.375 Splines – Butt Dia 2.344″ – Tube Dia 2.500
$39.98
Description
The 3140-1711 Stub & Midship Shaft is a critical component in your driveline system, designed to handle the torque transfer from the transmission to the differential. With 16 X 1.375 splines and a tube diameter of 2.500″, this shaft ensures a robust connection that can withstand the demands of various applications. If you’re experiencing vibrations or unusual noises during acceleration, the stub and midship shaft could be the culprit, particularly if the splines are worn or damaged.
When diagnosing driveline issues, pay attention to symptoms such as vibrations that increase with speed or a noticeable clunking sound when shifting gears. These can indicate that the stub and midship shaft is failing. The 3140-1711’s specifications, including a butt diameter of 2.344″ and a tube wall thickness of 0.083″, are engineered to provide the necessary strength and durability.
- Verify spline count and ensure it matches your application.
- Check the end-to-weld measurement of 6.344″ for proper fitment.
- Inspect for any signs of wear or damage before installation.
- Ensure correct phasing during installation to prevent vibrations.
Replacing a worn stub and midship shaft with the 3140-1711 will restore proper function and reliability to your driveline system. This part is compatible with applications that are the same as 2-40-1711, ensuring a seamless fit and performance.
| Butt dia |
2.344 |
|---|---|
| End to weld |
6.344 |
| Notes |
Same as 2-40-1711 |
| Partn number |
3140-1711 |
| Remaining stock |
<10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
2.250 |
| Tube dia |
2.500 |
| Tube wall |
0.083" |
| Style |
Slip |
