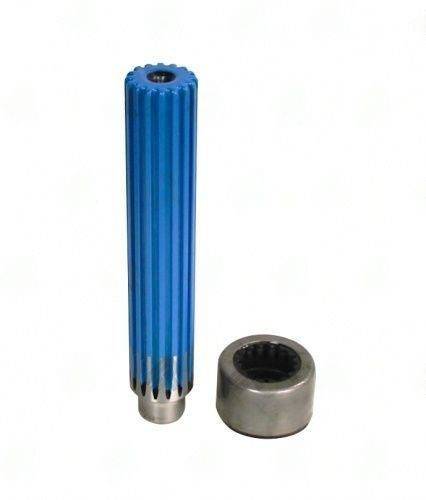

3140-1701-3 – Stub & Midship Shaft – 16 X 1.375 Splines – Butt Dia 1.000″ – Tube Dia Wall 1.250X0.120
$82.29
Description
The 3140-1701-3 Stub & Midship Shaft is a critical component for effective torque transmission in your driveline system. With 16 X 1.375 splines and a butt diameter of 1.000″, this shaft is engineered to deliver the performance you need. The precise dimensions ensure compatibility with your existing setup, preventing issues that can arise from using incorrect parts.
One of the standout features of the 3140-1701-3 is its 6.500″ spline length, which is specifically designed to fit various applications. The tube diameter wall of 1.250X0.120 provides the necessary strength while maintaining a balance between weight and performance. If you were to substitute this shaft with a similar but incorrectly sized one, you could experience excessive vibrations or even failure due to misalignment.
- Verify the spline count and diameter for proper fit.
- Ensure the butt diameter matches your yoke specifications.
- Check the end-to-weld measurement of 7.750″ for accurate installation.
- Inspect the tube diameter wall for structural integrity.
- Always balance the assembly to minimize vibration issues.
Using the 3140-1701-3 Stub & Midship Shaft guarantees that you maintain optimal performance in your driveline system. Proper installation and adherence to specifications will ensure longevity and reliability.
| Butt dia |
1.000 |
|---|---|
| End to weld |
7.750 |
| Partn number |
3140-1701-3 |
| Remaining stock |
<10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
6.500 |
| Tube dia |
1.250 |
| Tube wall |
0.120 |
| Style |
Slip |
