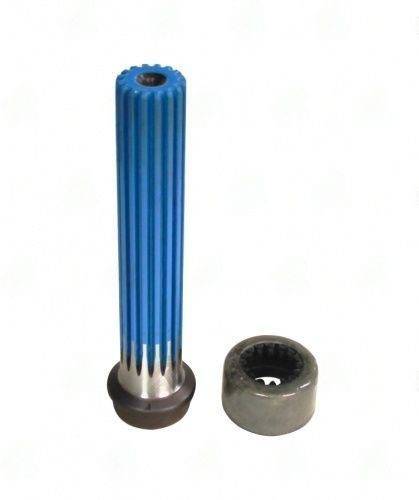

3140-1701-2 – Stub & Midship Shaft – 16 X 1.375 Splines – Butt Dia 1.766″ – Tube Dia Wall 2.000X0.120
$75.90
Description
The 3140-1701-2 Stub & Midship Shaft is engineered for optimal torque transmission in driveline applications. With its 16 X 1.375 splines and a butt diameter of 1.766 inches, this shaft is built to handle the demands of various vehicles. The slip style design allows for necessary movement, making it suitable for applications where flexibility is crucial.
Measuring 6.250 inches in spline length and 7.750 inches from end to weld, this shaft is designed to fit precisely within your driveline setup. The 2.000-inch tube diameter and 0.120-inch wall thickness ensure that it can withstand the rigors of daily operation while maintaining critical speed limits. When installing the 3140-1701-2, it’s essential to verify phasing marks and check for runout to prevent vibration issues.
- Ensure proper alignment to avoid premature wear.
- Torque all bolts to the manufacturer’s specifications.
- Balance the assembly if any vibrations occur during operation.
- Inspect the mating components to ensure compatibility.
This Stub & Midship Shaft is a vital component in maintaining the integrity of your driveline system, ensuring that torque is efficiently transmitted from the transmission to the differential. Whether you’re working on a performance build or maintaining a fleet vehicle, the 3140-1701-2 is designed to deliver reliable performance.
| Butt dia |
1.766 |
|---|---|
| End to weld |
7.750 |
| Partn number |
3140-1701-2 |
| Remaining stock |
>10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
6.250 |
| Tube dia |
2.000 |
| Tube wall |
0.120 |
| Style |
Slip |
