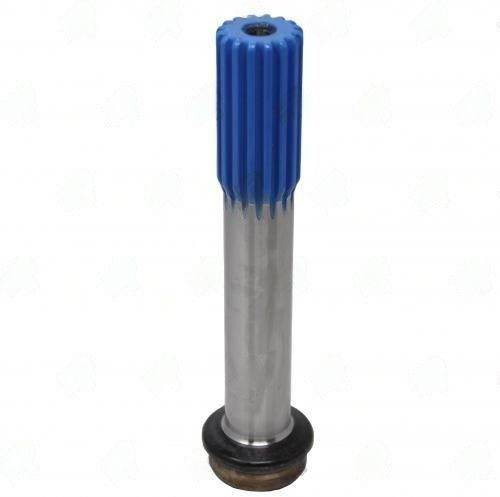

3140-1701-1 – Stub & Midship Shaft – 16 X 1.375 Splines – Butt Dia 1.766″ – Tube Dia 2.000
$50.32
Description
The 3140-1701-1 Stub & Midship Shaft is engineered for optimal torque transmission in your driveline system. With a spline count of 16 X 1.375, this shaft ensures a secure fit and reliable performance. The 1.766 inch butt diameter is crucial for interfacing with compatible components, allowing for effective torque transfer from the transmission to the differential.
Measuring 2.625 inches in spline length, this shaft provides the necessary engagement for smooth operation. The tube diameter of 2.000 inches and wall thickness of 0.120 inches contribute to the overall strength and durability of the shaft, ensuring it can handle the demands of various applications. The end-to-weld measurement of 7.750 inches is critical for maintaining the correct alignment and phasing within the driveline.
- Verify spline count and diameter match your application.
- Ensure the tube diameter and wall thickness meet your strength requirements.
- Check the end-to-weld length for proper fitment.
- Inspect the phasing marks during installation to prevent vibration issues.
- Torque all fasteners to the manufacturer’s specifications.
In summary, the 3140-1701-1 Stub & Midship Shaft is a vital component for any driveline setup, delivering reliable performance and durability.
| Butt dia |
1.766 |
|---|---|
| End to weld |
7.750 |
| Partn number |
3140-1701-1 |
| Remaining stock |
<10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
2.625 |
| Tube dia |
2.000 |
| Tube wall |
0.120 |
| Style |
Slip |
