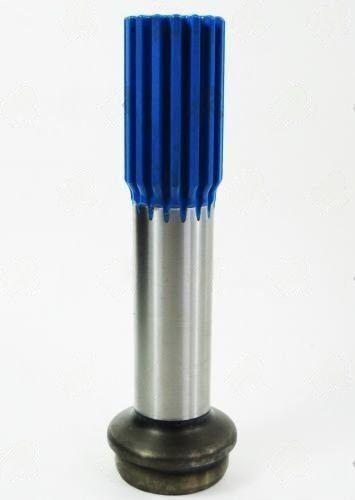

3140-1701 – Stub & Midship Shaft – 16 X 1.375 Splines – Butt Dia 1.766″ – Tube Dia 2.000
$37.40
Description
When you encounter vibrations or driveline issues, the 3140-1701 Stub & Midship Shaft is often the solution. This component plays a critical role in transmitting torque from the transmission to the differential, and any misalignment or wear can lead to significant performance problems. With 16 X 1.375 splines and a tube diameter of 2.000″, this shaft is designed to fit seamlessly into your driveline setup.
The 3140-1701 Stub & Midship Shaft features a butt diameter of 1.766″ and a slip style that allows for easy installation and adjustment. The splines length of 2.250″ ensures a secure connection, while the end-to-weld measurement of 6.188″ provides the necessary length for proper fitment. The tube wall thickness of 0.120″ contributes to the overall strength and durability of the shaft, making it suitable for both standard and performance applications.
- Verify phasing marks during installation to maintain proper alignment.
- Check runout to avoid vibration issues.
- Torque bolts to specification to ensure secure connections.
- Balance the shaft if any vibrations are detected post-installation.
In summary, the 3140-1701 Stub & Midship Shaft is essential for maintaining the integrity of your driveline. By ensuring proper fit and alignment, you can prevent costly repairs and enhance the performance of your vehicle.
| Butt dia |
1.766 |
|---|---|
| End to weld |
6.188 |
| Partn number |
3140-1701 |
| Remaining stock |
<10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
2.250 |
| Tube dia |
2.000 |
| Style |
Slip |
| Tube wall |
0.120 |
