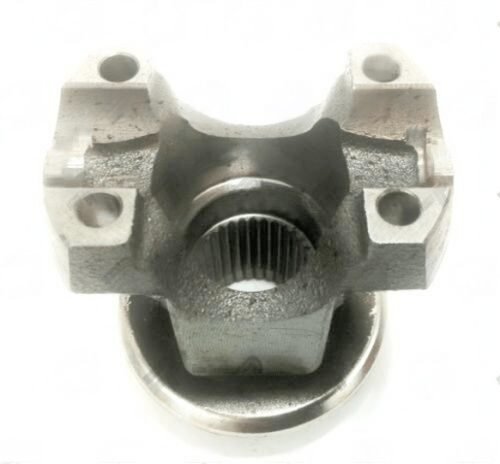

3104-321CV End Yoke CV Conversion To 1310 Jeep JK NP241 07-18, counterbore by nut for spline rubber seal
$45.01
+50 in stock
Description
When you’re dealing with a Jeep JK from 2007 and up, the need for a reliable driveshaft connection is crucial. The 3104-321CV End Yoke serves as a conversion solution, allowing you to replace the factory GKN style with a robust 1310 Spicer-style CV. This is particularly important when you’re upgrading or replacing components in the transfer case. A common issue arises when the factory yoke fails or doesn’t provide the necessary torque transfer, leading to vibrations or even failure during off-road conditions.
The 3104-321CV features a 1.401″ spline diameter and 32 splines, ensuring a snug fit that can handle the demands of both front and rear applications. With a hub diameter of 1.943″ and a CJ to end measurement of 3.875″, this yoke is engineered for precise alignment and optimal performance. The through hole measures 2.000″, accommodating various installation needs.
Here are a few key points to consider when working with the 3104-321CV:
- Ensure proper spline engagement depth during installation.
- Check phasing with the opposite yoke to avoid vibrations.
- This yoke is compatible with the 3102-392 flange for seamless assembly.
By choosing the 3104-321CV, you’re investing in a part that enhances your Jeep’s driveline integrity. Remember, never force the spline entry; a proper fit is essential for longevity and performance.
| Cj to end |
3.875 |
|---|---|
| Hub dia |
1.943 |
| Notes |
CONVERSION YOKE FOR JEEP JK 07 AND UP – FITS FOR FRONT & REAR INCLUDES HUB SLEEVE |
| Partn number |
3104-321CV |
| Series |
1310 |
| Splines count |
32 |
| Splines dia |
1.401 |
| Style |
CV |
| Through hole |
2.000" |
