3104-27 – End Yoke – 1310 Series – 1.172″ Splines Dia – 1.688″ Hub Dia

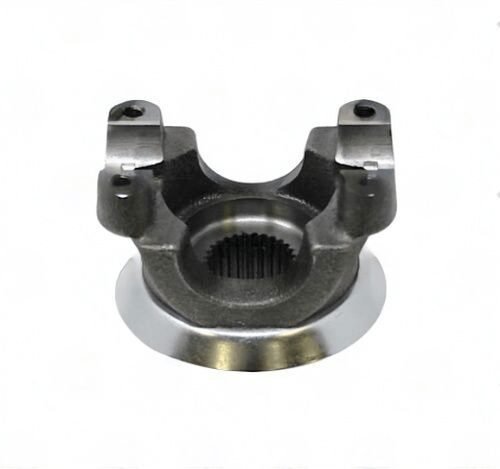

The 3104-27 pinion yoke is designed for use with the Chrysler 7.25″ and 8.25″ differentials, belonging to the 1310 series. This cast yoke features a spline count of 27, a spline diameter of 1.172 inches, and a hub diameter of 1.688 inches. It has a through hole measuring 1.062 inches and a centerline-to-end distance of 2.750 inches, classified as light duty (LD) with a BS style.

Compatible with the Dana strap kit number 2-70-18X, this yoke also aligns with Dana part number 2-4-5851-1.

For the Chrysler 7.25″ differential, it is applicable to several models, including:

• Coronet (1963 – 1976, rear)
• Dakota (1988 – 1996, front)
• Dart (1966 – 1971, rear)
• Diplomat (1974 – 1989, rear)
• Fifth Avenue (1980 – 1989, rear)
• Imperial (1977 – 1989, rear)
• New Yorker (1963 – 1989, rear)

For the Chrysler 8.25″ differential, applications include:

• 1/2 Ton Chrysler Van (1970 – 2004, rear)
• 1/2 Ton Dodge Pickup (1970 – 2006, rear)
• 3/4 Ton Chrysler Van (1971 – 2002, rear)
• 3/4 Ton Dodge Pickup (1970 – 2001, rear)
• Coronet (1968 – 1976, rear)
• Dakota (1988 – 2005, rear)
• Dart (1972 – 1976, rear)
• Diplomat (1977 – 1983, rear)
• Durango (1998 – 2004, rear)
• Fifth Avenue (1972 – 1988, rear)
• Grand Cherokee/WJ (1992 – 2001, rear)
• Imperial (1971 – 1983, rear)
• Liberty (2002 – 2006, rear)
• Magnum (1978 – 1983, rear)
• New Yorker (1968 – 1989, rear)
• Polara (1970 – 1974, rear)
• Ram Charger (1976 – 1993, rear)
• Satellite (1970 – 1974, rear)
• XJ (1991 – 2001, rear)
• XJ Sport (1991 – 2001, rear)
