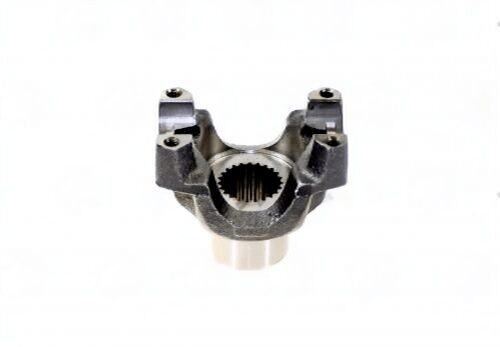

3104-231 – End Yoke – 1.26″ Splines Dia – 1.562″ Hub Dia – 23 Spline
$110.73
1 in stock
Description
The 3104-231 End Yoke is engineered specifically for DODGE TRANS YOKE applications, ensuring a solid connection between the driveshaft and transmission. This yoke features a 1.26″ spline diameter and 23 splines, which are critical for effective torque transfer and proper engagement. With a hub diameter of 1.562″ and a length from center to end of 3.062″, this yoke is designed to fit seamlessly into your driveline setup.
When installing the 3104-231, it’s essential to check the spline engagement depth and ensure proper phasing with the opposite yoke. Misalignment can lead to vibrations and premature wear. The 1310 Series designation indicates compatibility with specific U-joint sizes, which is crucial for maintaining the integrity of your driveline system. Always verify the spline count and diameter to avoid mismatches that could lead to failure.
- Hub Diameter: 1.562″
- Spline Count: 23
- Spline Diameter: 1.26″
- Length from Center to End: 3.062″
- Through Hole: 1.625″
In summary, the 3104-231 End Yoke is a vital component for DODGE vehicles, delivering reliable performance and durability. Proper installation and verification of specifications will ensure your driveline operates smoothly and efficiently.
| Cj to end |
3.062 |
|---|---|
| Hub dia |
1.562 |
| Notes |
DODGE TRANS YOKE |
| Partn number |
3104-231 |
| Series |
1310 |
| Splines count |
23 |
| Splines dia |
1.26 |
| Style |
BS |
| Through hole |
1.625 |
