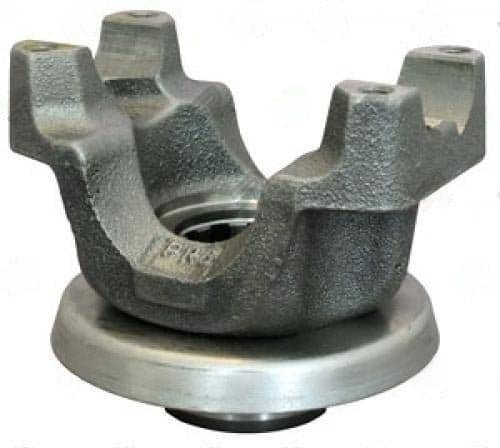

3104-10 – End Yoke – 1.125″ Splines dia – 1.552″ Hub Dia – 10 Splines”,
$115.41
0 in stock
Description
3104-10 is an essential End Yoke designed for 1310 Series applications, specifically for Dana 44 differentials. If you’re experiencing vibrations or misalignment in your driveline, this yoke is likely the solution. The 1.125″ spline diameter and 1.552″ hub diameter are critical for ensuring a proper fit with the mating U-joint, which directly affects the driveline’s performance and longevity.
When diagnosing driveline issues, a worn or damaged yoke can lead to excessive play or vibrations that can be felt throughout the vehicle. If you notice a clunking noise during acceleration or deceleration, it may indicate that the yoke is not engaging properly with the driveshaft or differential. This can lead to further damage if not addressed promptly.
Key specifications of the 3104-10 End Yoke include:
- 3.000″ centerline-to-end distance
- 10 splines for optimal engagement
- Through hole diameter of 1.500″ for secure mounting
- Style BS for compatibility with various setups
Replacing a faulty yoke with the 3104-10 not only restores proper function but also enhances the overall reliability of your driveline system. Always ensure proper spline engagement and phasing during installation to prevent future issues.
| Cj to end |
3.000" |
|---|---|
| Hub dia |
1.552 |
| Notes |
DANA 44 ,STRAP PART NUMBER: 2-70-18 |
| Partn number |
3104-10 |
| Series |
1310 |
| Splines count |
10 |
| Splines dia |
1.125 |
| Style |
BS |
| Through hole |
1.500" |
