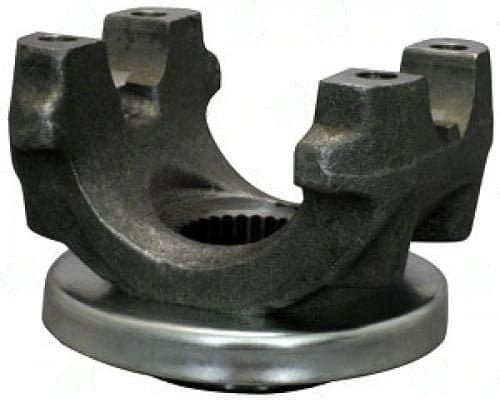

3104-09 – End Yoke – 1.328″ Splines Dia – 1.739″ Hub Dia – 30 Spline
$96.22
0 in stock
Description
When installing the 3104-09 End Yoke, it’s crucial to verify the spline count and diameter before proceeding. This yoke connects directly to GM 8.875 applications and features a 1.328″ spline diameter along with 30 splines, ensuring a proper fit with compatible U-joints. Before you slide this yoke onto the driveshaft, check the hub diameter of 1.739″ and the critical Cj to end measurement of 2.850″ to ensure alignment with your driveshaft setup.
A common mistake is mismatching the spline count; always confirm that the 30 splines match your output shaft. Additionally, the through hole measures 1.170″, which is important for proper bolt engagement. The style of this yoke is BS, which is essential for compatibility with specific applications.
- Verify spline engagement depth before installation.
- Check the hub diameter for proper fit.
- Ensure the Cj to end measurement aligns with your setup.
- Confirm the 30 spline count matches your U-joint.
- Use the correct strap part number: 1-0024 for fastening.
By following these steps, you can avoid common pitfalls and ensure a successful installation of the 3104-09 End Yoke.
| Cj to end |
2.850" |
|---|---|
| Hub dia |
1.739 |
| Notes |
GM 8.875 ,STRAP PART NUMBER:1-0024 |
| Partn number |
3104-09 |
| Series |
1310 |
| Splines count |
30 |
| Splines dia |
1.328 |
| Style |
BS |
| Through hole |
1.170" |
