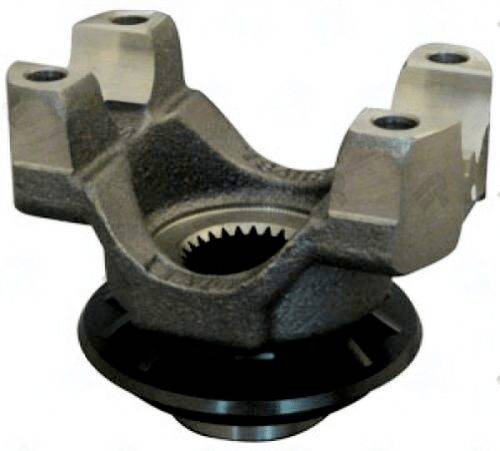

3104-05 – End Yoke – 1.188″ Splines Dia – 1310 Series – 1.521″ Hub Dia
$89.28
3 in stock
Description
The 3104-05 End Yoke is engineered for robust performance in GM 7.25 applications. With a 1.188″ spline diameter, this yoke ensures a precise fit into the output shaft, allowing for effective torque transfer. The 27 splines provide a secure engagement, which is critical for maintaining alignment and preventing slippage during operation.
Measuring 1.521″ in hub diameter, the 3104-05 yoke is designed to accommodate the specific requirements of the 1310 Series U-joint. This compatibility is essential, as it determines the cap diameter and cross width of the mating U-joint, ensuring optimal performance in your driveline setup.
Installation of the 3104-05 requires careful attention to detail. Here are some key points to consider:
- Verify spline engagement depth to ensure proper fit.
- Check phasing with the opposite yoke to prevent vibrations.
- Do not force spline entry; align carefully to avoid damage.
With a Cj to end measurement of 3.185″ and a through hole of 1.475″, this yoke is built to meet the demands of high-performance applications. The 3104-05 End Yoke is a reliable choice for those looking to maintain or upgrade their driveline components, ensuring that your vehicle operates smoothly and efficiently.
| Cj to end |
3.185 |
|---|---|
| Hub dia |
1.521 |
| Notes |
GM 7.25 ,STRAP PART NUMBER: 2-70-18 |
| Partn number |
3104-05 |
| Series |
1310 |
| Splines count |
27 |
| Splines dia |
1.188 |
| Style |
BS |
| Through hole |
1.475 |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| End Yokes (145) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

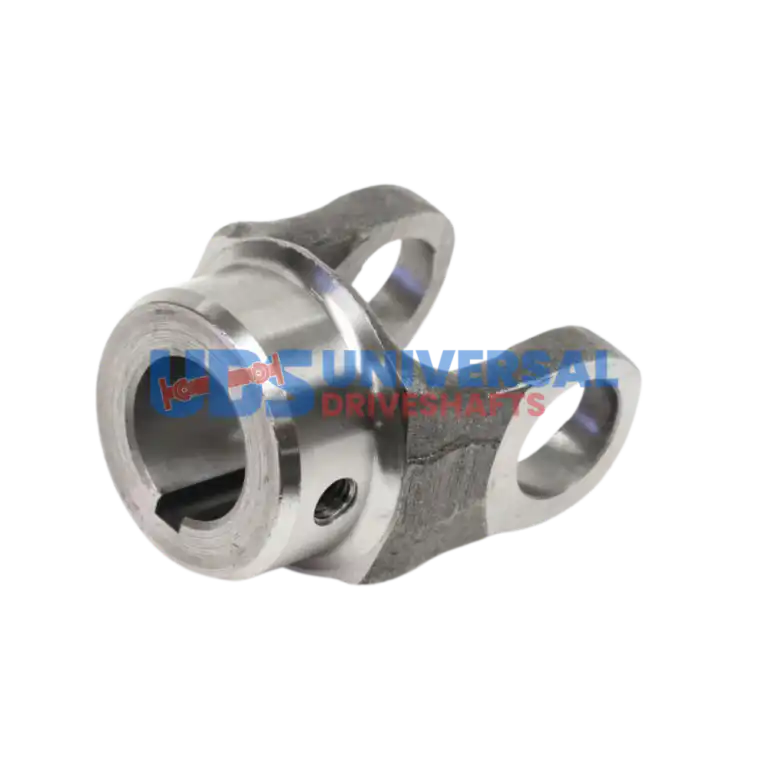

 | Cj to end 2.50 Hub dia 2.25 Partn number 10-4-143 Bore dia 1.125 Bore type round Keyway GAP - 0.25 Brand UDS Splines count N/A Style ISR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
