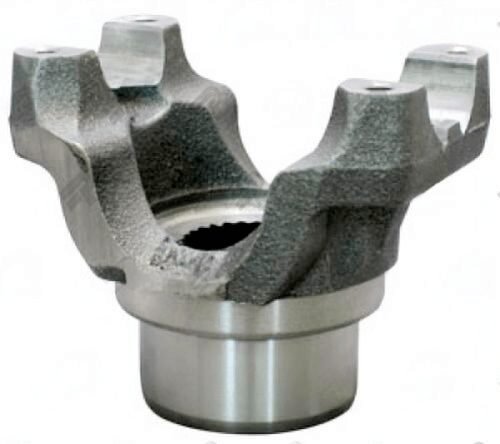

3104-02 – End Yoke – 1.146″ Splines Dia – 1.844″ Hub Dia – 26 Spline
$104.65
4 in stock
Description
The 3104-02 End Yoke is a critical component for connecting your driveshaft to the DANA 35 axle, ensuring efficient torque transfer. With a spline diameter of 1.146″ and 26 splines, this yoke is specifically designed for use with 1310 Series U-joints. The 1.844″ hub diameter ensures a secure fit, which is essential for maintaining the integrity of your driveline.
When installing the 3104-02, pay attention to the following:
- Verify spline engagement depth to ensure proper fit.
- Check phasing with the opposite yoke to avoid vibrations.
- Torque specifications should be followed closely to prevent loosening.
Using a yoke that doesn’t match the 1310 Series specifications can lead to compatibility issues, such as improper U-joint fitment. For example, a 1350 yoke may appear similar but has different cap diameters, which can prevent the correct U-joint from being installed. This can lead to premature wear or even failure of the driveline components.
The 3104-02 End Yoke is built to handle the demands of both on-road and off-road applications, making it a reliable choice for performance builders and fleet technicians alike. Ensure you’re using the right components for your DANA 35 setup to maintain optimal performance and longevity.
| Cj to end |
2.938 |
|---|---|
| Hub dia |
1.844 |
| Notes |
DANA 35 |
| Partn number |
3104-02 |
| Series |
1310 |
| Splines count |
26 |
| Splines dia |
1.146 |
| Style |
BS |
| Through hole |
1.375 |
