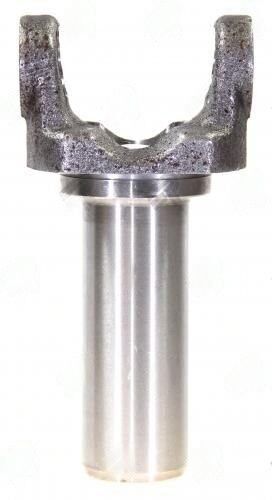

3103-30 – Transmission Yokes – 1310 Series – 28/30 X 1.284 Splines – 1.652″ Hub Dia
$88.12
19 People watching this product now!
Description
The 3103-30 1310 Series Driveshaft Slip Yoke is suitable for various Nissan applications, including the 300ZX and Frontier. This slip yoke features a length of 6.266 inches from the center of the U-joint to the end of the slip. It has an internal spline major diameter of 1.284 inches and a ground hub/seal diameter of 1.652 inches, with a counterbore diameter of 1.320 inches and a depth of .390 inches. The yoke accommodates 28/30 splines (30 spline with 2 dead spots, effectively 28 spline) and requires a 1310 series universal joint with a 1.062-inch cap and 3.20-inch span.
Additional information
| Center u joint to end | 6.266 |
|---|---|
| Counter bore dia | 1.319 |
| Hub dia | 1.652 |
| Notes | Nissan |
| Partn number | 3103-30 |
| Remaining stock | <10 |
| Series | 1310 |
| Splines count dia | 28/30 X 1.284 |
