3103-282
$110.80
19 People watching this product now!
Description

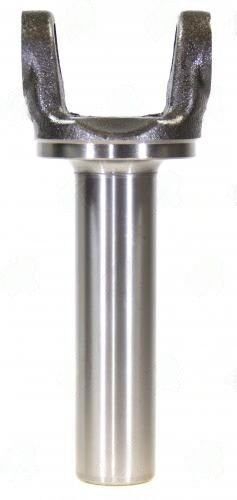

The 3103-282 1310 Series Driveshaft Slip Yoke is designed for Ford 5R45 and 5R55 transmissions, featuring a spline count of 28 (27/28 with potential “dead spots”). It has an inside spline major diameter of 1.220 inches and an outside ground hub/sealing diameter of 1.600 inches. The yoke measures approximately 8.187 inches from the center of the universal joint cap to the end of the slip. This slip yoke is used in various applications, including some 2007+ 2WD Ford Sport Trac models, and requires a 1310 series universal joint with a 3.25-inch span and 1.062-inch cap.
Additional information
| Center u joint to end | 8.187 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.600 |
| Notes | Explorer/Sport-Trac 5R55/5R45 Transmissions Only, has a different pressure angle vs other 28 spline yokes. |
| Partn number | 3103-282 |
| Remaining stock | >10 |
| Series | 1310 |
| Splines count dia | 27/28 X 1.220 |
