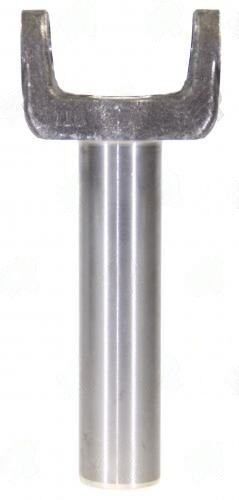

3103-28 – Transmission Yokes – 1310 Series – 27/28 X 1.220 Splines – Center U Joint To End 7.750

The 3103-28 Transmission Yoke is a crucial component for your driveline setup, especially if you’re working with C4 transmissions. Before installation, ensure you check the spline engagement depth. This yoke features a spline count of 27/28 X 1.220, which is critical for proper fitment. A common mistake is mismatching spline counts; always verify against your output shaft to avoid issues.

This yoke is part of the 1310 Series, known for its robust design that handles torque transfer effectively. With a hub diameter of 1.600 inches and a counter bore diameter of 1.310 inches, it provides a secure connection to your transmission. The slip yoke length measures 7.750 inches from the center U-joint to the end, allowing for necessary axial movement during suspension travel.

• Check spline count and diameter before installation.
• Ensure proper phasing with the opposite yoke.
• Use a lubricant on splines for smoother engagement.
• Torque fasteners to manufacturer specifications.
• Inspect mating components for wear or damage.

By keeping these tips in mind, you can ensure a successful installation of the 3103-28 yoke, optimizing performance and longevity in your driveline system.
