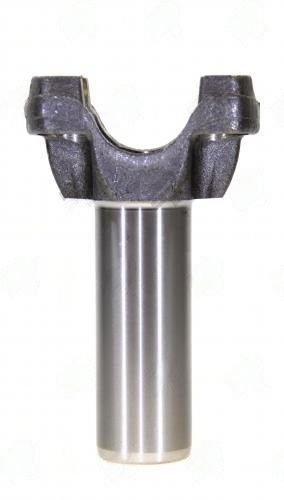

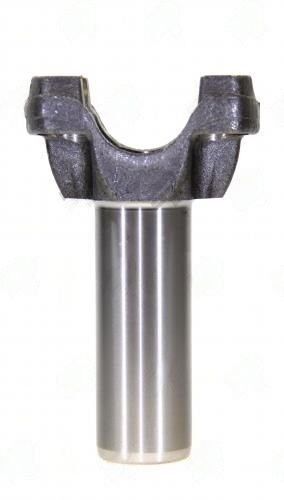

3103-27CV – Transmission Yokes – 1310 Series – 1.500″ Hub Dia – Center U Joint To End 5.875
$101.90
Description
The 3103-27CV Transmission Yoke is a crucial component for your Jeep 231 transfer case, ensuring a solid connection between the driveshaft and the transmission. This yoke is specifically designed to fit the factory output of the Jeep 231 T/C, making it an essential replacement part for any maintenance or upgrades. With a 1310 Series designation, this yoke features a hub diameter of 1.500 inches and a spline count of 26/27, which is vital for compatibility with standard Spicer CV parts.
One of the standout features of the 3103-27CV is its center U joint to end measurement of 5.875 inches. This dimension is critical for proper alignment and functionality within the driveline system. If you were to use a yoke with a different spline count or hub diameter, you could face installation issues or, worse, driveline failure. Always ensure that the yoke you select matches the exact specifications required for your application.
- Hub Diameter: 1.500 inches
- Spline Count: 26/27 X 1.176
- Series: 1310
- Center U Joint to End: 5.875 inches
- Application: Jeep 231 T/C CV Yoke
In summary, the 3103-27CV Transmission Yoke is engineered for durability and precision, making it a reliable choice for Jeep enthusiasts and technicians alike. Ensure you choose the right series and dimensions to maintain optimal performance in your driveline.
| Center u joint to end | 5.875 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.500 |
| Notes | Jeep 231 T/C CV Yoke |
| Partn number | 3103-27CV |
| Remaining stock | >10 |
| Series | 1310 |
| Splines count dia | 26 / 27 X 1.176 |
