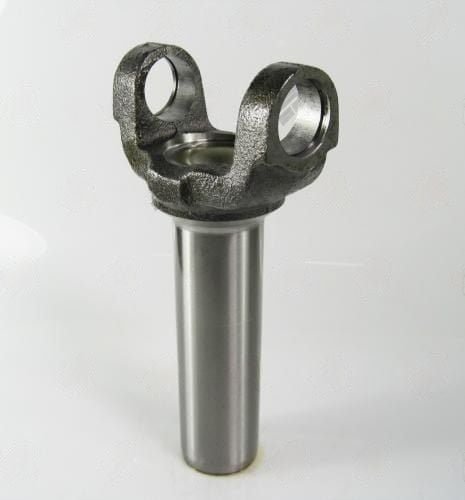

3103-277 is a Transmission Yoke that plays a crucial role in connecting your driveshaft to the transmission or transfer case. With a spline count of 26/27 and a spline diameter of 1.176 inches, this yoke ensures a secure fit and optimal power transfer. The 1.500-inch hub diameter is designed to interface perfectly with 1310 Series components, making it a versatile choice for various drivetrain setups.
The length from the center U-joint to the end measures 6.750 inches, which is critical for maintaining the correct phasing with the opposite yoke. This measurement impacts the overall alignment and performance of your driveline, ensuring smooth operation under load. When installing the 3103-277, always check the spline engagement depth and ensure proper alignment to avoid premature wear or failure.
- Check spline count: 26/27 for compatibility.
- Verify hub diameter: 1.500 inches for proper fit.
- Ensure correct phasing with opposite yoke during installation.
- Inspect for any signs of wear before installation.
In summary, the 3103-277 Transmission Yoke is engineered for reliability and performance in 1310 Series applications. Its precise dimensions and robust design make it an essential component for any driveline setup.
