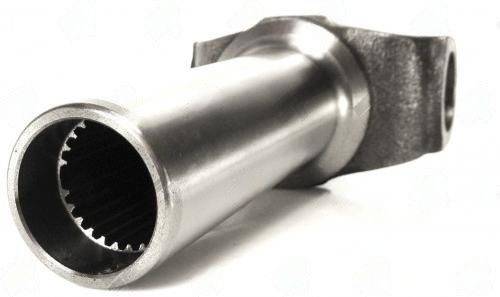

3103-275 – Transmission Yokes – 1310 Series – 1.500″ Hub Dia – Center U Joint To End 5.469
$73.39
Description
The 3103-275 Transmission Yoke is engineered specifically for various GM transmissions, including Turbo 350, TH-350, T56, and more, making it a versatile choice for your driveline needs. This yoke is part of the 1310 series, which is known for its balance between strength and weight, ideal for applications that require reliable torque transfer without unnecessary bulk.
With a hub diameter of 1.500 inches and a spline diameter of 1.176 inches, the 3103-275 ensures a snug fit and optimal engagement with the mating components. The slip yoke length measures 5.469 inches from the center line to the end of the spline, allowing for necessary axial movement during suspension travel. This design is crucial for accommodating the dynamics of a vehicle’s drivetrain, especially under load conditions.
Key specifications include:
- 26 / 27 X 1.176 Splines
- 1.500″ Hub Diameter
- Center U Joint To End: 5.469″
- Compatible with GM cars and trucks until the mid 80’s
- Note: Now most use the longer TH700 type in 3R, part number 3R03-700
When installing the 3103-275, ensure proper spline engagement depth and verify phasing with the opposite yoke to prevent driveline vibrations. This yoke is a reliable choice for restoring or upgrading your GM transmission system, delivering the performance and durability you expect from a quality driveline component.
| Center u joint to end | 5.469 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.500 |
| Notes | GM cars and truck until the mid 80's. Now most use the longer TH700 type in 3R our part number 3R03-700. |
| Partn number | 3103-275 |
| Remaining stock | >10 |
| Series | 1310 |
| Splines count dia | 26 / 27 X 1.176 |
