3103-273
$74.76
20 People watching this product now!
Description

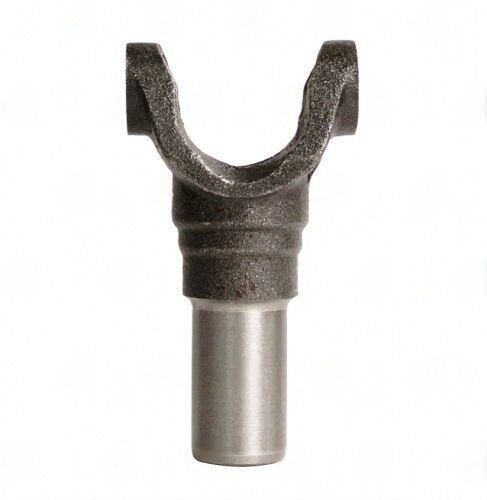

The 3103-273 Transmission Slip Yoke is designed for use with NP231 transfer cases. This 1310 series yoke features a robust steel construction and an outside snap ring style for secure installation. It has a centerline-to-end-of-spline measurement of 5.750 inches and a barrel diameter of 1.500 inches. The spline outside diameter is 1.176 inches, with a spline count of 27/26 (27 splines with 26 effective). The bearing cap diameter is 1.063 inches, with a bearing cap lock up of 3.219 inches. This slip yoke includes involute splines for precise fit and reliable performance.
Additional information
| Center u joint to end | 5.750 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.500 |
| Notes | Fits 1997up Jeep Wrangler Has boot and fits on an external spline on the tranfer case ,Same as 2-3-13051X |
| Partn number | 3103-273 |
| Remaining stock | >10 |
| Series | 1310 |
| Splines count dia | 26 / 27 X 1.176 |
