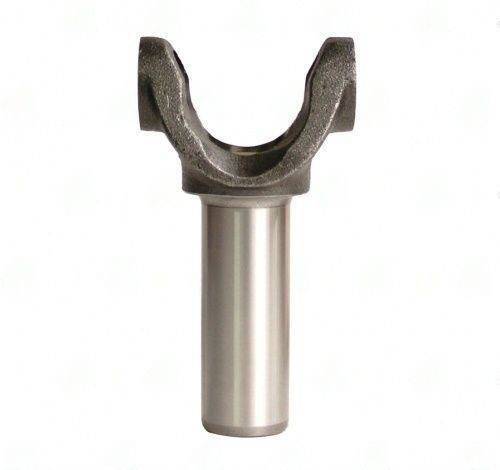

The 3103-272 is a vital component for high-angle applications, specifically designed for Jeep Wranglers. Before installation, ensure you check the spline count—this yoke supports 26 / 27 X 1.176 splines, which is critical for proper engagement with the mating U-joint. The 1.500″ hub diameter also plays a crucial role in ensuring a snug fit with the transmission or transfer case.
When preparing to install the 3103-272, pay close attention to the slip yoke length of 5.750 inches from the center line to the end of the spline. This dimension is key for maintaining the correct phasing with the opposite yoke. A common mistake is misaligning the yoke during installation, which can lead to vibrations and premature wear.
- Verify spline engagement depth before sliding the yoke onto the transmission.
- Check for proper phasing with the opposite yoke to avoid driveline issues.
- Ensure the yoke is compatible with the 1310 series U-joint for optimal performance.
- Inspect the yoke for any signs of wear or damage before installation.
Remember, the 3103-272 is not just a standard yoke; it’s designed for high-angle applications, making it essential for off-road performance. Always refer to the manufacturer’s specifications and guidelines to ensure a successful installation.
