3103-251 Transmission Yoke 1310 Series Fits various 25 spline Ford, Lincoln, Mercury transmission cases including C3, A4LD, 5R55E and some Transfer cases. 2-3-8431X
$71.10
32 in stock
Description

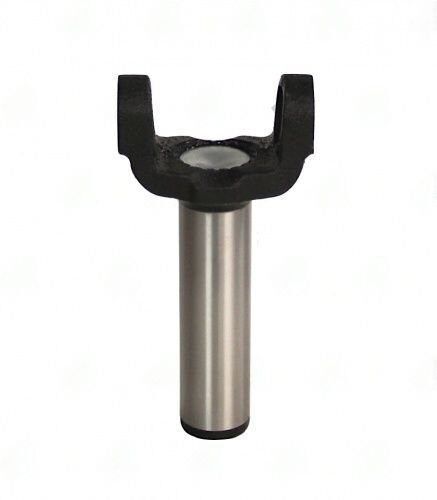

The 3103-251 Transmission Slip Yoke is compatible with various 25-spline Ford, Lincoln, and Mercury transmissions, including C3, A4LD, and 5R55E. This 1310 series yoke features an outside snap ring style and is constructed from durable steel. It has a slip yoke length of 6.500 inches (165.100 mm) from the center line to the end of the spline. The yoke includes a U-joint cap diameter of 1.063 inches (27.000 mm) and a width of 3.219 inches (81.762 mm). The barrel diameter measures 1.375 inches (34.925 mm), and the spline diameter is 1.113 inches (28.270 mm). It supports 25 splines and accommodates a joint angle of 20 degrees, making it suitable for various drivetrain applications.
2-3-8431X
| Center u joint to end | 6.500 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.375 |
| Notes | Ford C3 |
| Partn number | 3103-251 |
| Remaining stock | >10 |
| Series | 1310 |
| Splines count dia | 25 X1.113 |
