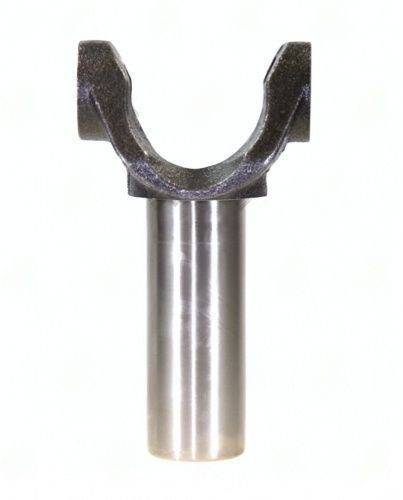

3103-23S MAZDA RX8 AUTO, machined shoulder off hub Transmission Yoke 1310

When you’re working with the 3103-23S Transmission Yoke, it’s essential to ensure a seamless fit for your MAZDA RX8 AUTO. This yoke is designed with 23 X 1.201 splines and a 1.575″ hub diameter, making it a reliable choice for your drivetrain needs. Before installation, verify the spline count and ensure it matches your transmission output. A common mistake is mismatching spline sizes, which can lead to improper engagement and potential damage.

With a center U joint to end measurement of 5.750″, this yoke provides the necessary length for proper alignment in your driveline. Pay attention to the hub length as well, which is critical for ensuring that the yoke fits snugly against the transmission or transfer case. Always check the phasing with the opposite yoke to avoid vibrations during operation.

• Check spline engagement depth before installation.
• Verify that the hub diameter is compatible with your setup.
• Ensure proper phasing with the opposite yoke to prevent driveline issues.
• Inspect for any signs of wear on the splines and hub before fitting.
• Remember, never force the spline entry; it should slide on smoothly.

In summary, the 3103-23S is a robust 1310 Series Transmission Yoke that fits perfectly with the MAZDA RX8 AUTO. By following these installation tips, you can ensure a reliable and efficient connection in your driveline.
