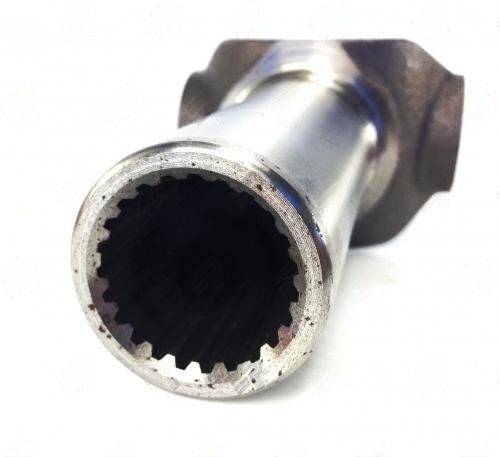

The 3103-23 Transmission Yoke is a crucial component for Toyota and Lexus vehicles, specifically designed for models from 1989 to 2000. This yoke belongs to the 1310 Series, which is known for its robust construction and compatibility with various driveline configurations. With a spline count of 23 and a major diameter of 1.201 inches, this yoke provides a secure connection to the driveshaft, ensuring effective torque transfer.
One of the standout features of the 3103-23 is its hub diameter of 1.575 inches, which is critical for proper fitment and alignment within the driveline system. The measurement from the center of the universal joint to the end of the spline is 5.750 inches, making it essential for maintaining the correct phasing with the opposite yoke. This yoke is designed to handle the axial movement required during suspension travel, thanks to its slip yoke design.
When installing the 3103-23, it’s important to check the spline engagement depth and ensure that the yoke is properly phased with the opposing yoke. Here are some key points to consider:
- Verify the spline count and diameter to ensure compatibility.
- Check the hub diameter for a proper fit.
- Inspect the yoke for any signs of wear or damage before installation.
Using the correct yoke is vital; a mismatch can lead to failure in torque transfer and potential driveline issues. The 3103-23 is engineered to meet the demands of Toyota applications, making it a reliable choice for your driveline needs. Remember, proper installation and verification are key to achieving optimal performance with the 3103-23.
