3103-163 Used on Powerglide transmissions which were on early Chevrolet passenger cars
$100.28
Out of stock
Description

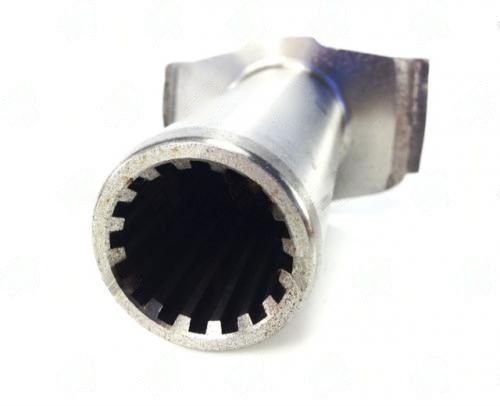

The 3103-163 Transmission Slip Yoke is specifically designed for early Chevrolet Powerglide transmissions, used in passenger cars from 1955 to 1964. This 1310 series yoke features a 16-spline count, with a spline diameter of 1.172 inches and a barrel diameter of 1.500 inches. It measures 4.875 inches from the centerline to the end of the spline. The yoke includes a U-joint cap diameter of 1.063 inches and a U-joint width of 3.219 inches. Made from steel, it accommodates a joint angle of 4.000 degrees and is equipped with an outside snap ring style.
Used on Powerglide transmissions which were on early Chevrolet passenger cars. Same as 2-3-1331X
| Center u joint to end | 4.875 |
|---|---|
| Counter bore dia | 1.156 |
| Hub dia | 1.500 |
| Notes | Used on Powerglide transmissions . Same as 2-3-1331X |
| Partn number | 3103-163 |
| Remaining stock | >10 |
| Series | 1310 |
| Splines count dia | 16 X 1.375 |
