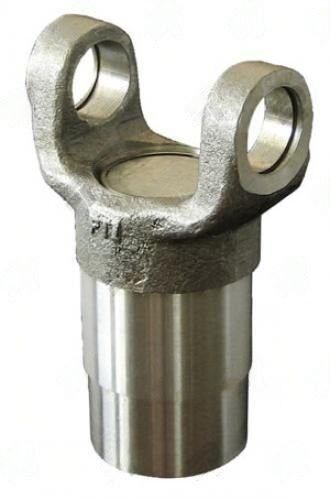

When you’re about to install the 3103-12 Transmission Yoke, it’s crucial to ensure compatibility with your setup. This yoke, designed for the 1310 Series, features 10 x 1.375 splines, making it a reliable choice for various boat applications, especially those utilizing standard jet drives. Before you slide this yoke onto the transmission, double-check the spline count and diameter to avoid any mismatches. A common mistake is trying to fit a yoke with the wrong spline configuration, which can lead to damage and performance issues.
With a hub diameter of 2.125 inches and a center U joint to end measurement of 4.875 inches, this yoke is engineered for a snug fit and efficient power transfer. Remember to inspect the counter bore diameter of 875 inches to ensure it aligns with your existing components. Proper installation is key; always verify the phasing with the opposite yoke to maintain balance and reduce vibrations.
- Check spline engagement depth before installation.
- Verify compatibility with 1310 Series U-joints.
- Ensure proper phasing with the opposite yoke.
- Inspect for any signs of wear or damage before use.
- Use appropriate tools to avoid forcing the spline entry.
By following these guidelines, you can ensure that the 3103-12 Transmission Yoke performs optimally in your application. This yoke is not just a part; it’s a critical component that plays a vital role in the driveline system.
