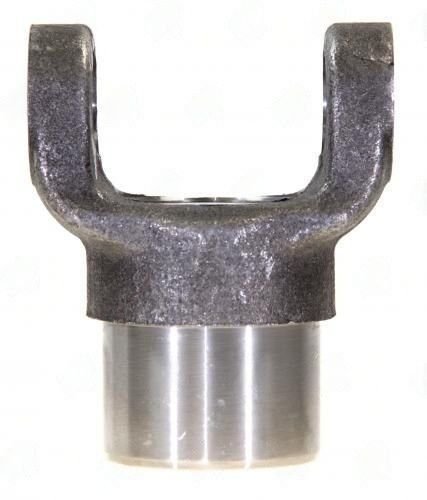

3103-11 is a Transmission Yoke specifically designed for boat applications, fitting standard jet drives. This 1310 Series yoke features a 10-spline configuration with a major spline diameter of 1.375 inches, ensuring a secure connection to the transmission. The hub diameter measures 2.125 inches, providing a robust interface for torque transfer.
One of the key aspects of the 3103-11 yoke is its capability to handle axial movement, which is critical in marine environments where suspension travel can vary significantly. With a center U-joint to end measurement of 3.375 inches, this yoke is engineered for optimal performance in dynamic conditions.
- 10 x 1.375 Splines for precise fitment
- 2.125″ Hub Diameter for enhanced durability
- Counter Bore Diameter of 1.000″ for secure installation
- Specifically used in boat applications, fits standard jet drives
When installing the 3103-11, ensure proper spline engagement depth and verify phasing with the opposite yoke to prevent premature wear or failure. Using the correct series is crucial; a 1310 Series yoke like this one is not interchangeable with other series due to differences in cap diameter and U-joint compatibility. Always check your specifications before installation to ensure a proper fit.
