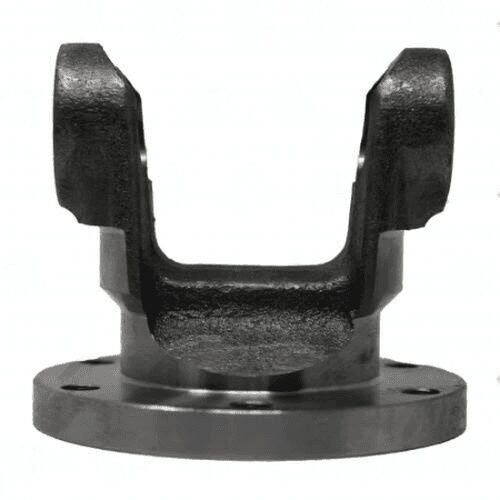

3102-86 Flange Yoke 1310 Series, Outside Diameter 100 mm Jeep CV Joint Conversion Flange

When dealing with driveline issues, the 3102-86 Flange Yoke is a critical component for Jeep CV conversions. This yoke, part of the 1310 Series, features a 3.935″ OD pilot diameter and a bolt circle diameter of 3.386″. If you’re experiencing vibrations or misalignment during acceleration, it’s essential to check the yoke for wear or damage, as these symptoms often point to a failing connection at the differential or transmission.

With six bolt holes, each measuring 0.328″ in diameter, proper installation is key. If the yoke is not securely fastened or if the bolt holes show signs of elongation, it can lead to further driveline issues. The centerline of the joint to the flange face measures 2.750″, which is crucial for ensuring the correct engagement with the universal joint.

Here are some important specifications to keep in mind:

• Series: 1310
• Bolt Circle Dia: 3.386″
• Bolt Hole Dia: 0.328″
• Pilot Dia: 3.935″, OD
• Bolt Holes: 6

Replacing a worn or damaged yoke with the 3102-86 restores proper function and alignment, eliminating vibrations and ensuring a smooth ride. Always verify the spline engagement depth and phasing with the opposite yoke during installation to prevent future issues. The 3102-86 is designed to handle the demands of your driveline system effectively.
