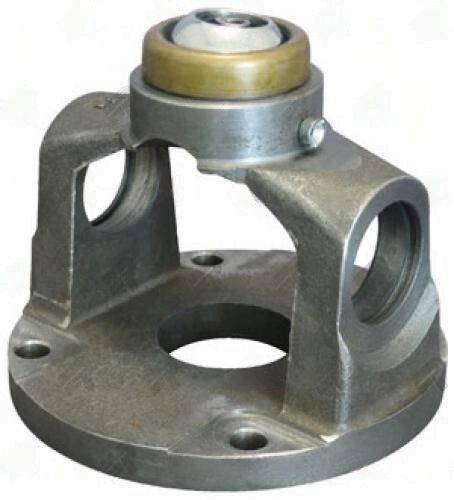

3102-411CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.583
$79.41
29 in stock
Description
The 3102-411CV Cv Flange Yoke is engineered specifically for the Ford Ranger and Explorer, facilitating a smooth 1310CV conversion. This yoke connects the driveshaft to the transmission or differential, ensuring optimal power transfer and durability. With a ball stud diameter of 0.5 inches and a bolt circle diameter of 3.583 inches, it provides a robust connection that withstands the rigors of off-road and on-road driving.
Key specifications include:
- Series: 1310
- Ball Stud Diameter: 0.5 inches
- Bolt Circle Diameter: 3.583 inches
- Pilot Diameter: 4.094 inches
- C L To Face: 1.625 inches
When installing the 3102-411CV, ensure proper spline engagement and verify phasing with the opposite yoke to prevent driveline vibrations. This yoke’s design allows for axial movement, accommodating suspension travel while maintaining alignment. The 1310 Series compatibility ensures that it fits seamlessly with other components in your driveline setup.
In summary, the 3102-411CV is a critical component for anyone looking to upgrade or replace their Ford Ranger or Explorer’s driveline. Its precise engineering and compatibility with the 1310 Series make it an essential part of your vehicle’s performance and reliability.
| Ball stud dia | 0.5 |
|---|---|
| Bolt circle dia | 3.583 |
| Bolt hole dia | 328 |
| Brand | UDS |
| C l to face | 1.625 |
| Class | LD |
| Notes | Ford Ranger/Explorer 1310CV conversion |
| Partn number | 3102-411CV |
| Pilot dia | 4.094 |
| Pilot type | M |
| Series | 1310 |
