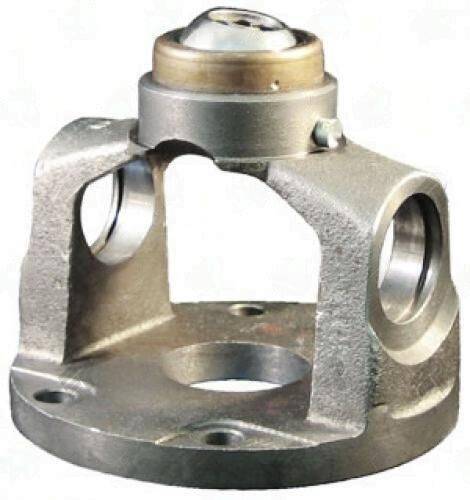

3102-393CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.386

The 3102-393CV Cv Flange Yoke is engineered for robust performance in CV joint applications, specifically designed for Jeep Cherokee and Dodge Durango models. This yoke features a 1310 Series specification, which is critical for ensuring compatibility with the corresponding U-joint dimensions. The 0.5″ ball stud diameter is essential for proper engagement, allowing for effective torque transfer and maintaining driveline integrity.

With a bolt circle diameter of 3.386″, this yoke fits seamlessly into the 4-bolt configuration used on a 6-bolt pattern, making it versatile for various installations. The pilot diameter of 3.935″ and a C L to face measurement of 1.625″ ensure that this yoke aligns perfectly with the mating components, reducing the risk of misalignment and potential failure.

When installing the 3102-393CV, consider the following:

• Verify spline engagement depth to ensure proper fit.
• Check phasing with the opposite yoke to maintain driveline balance.
• Never force the spline entry; it should slide in smoothly.

This yoke is particularly useful for CV joint conversions, compatible with part numbers 3152-1001 and 3152-1002. The 3102-393CV delivers reliable performance, making it a solid choice for both fabrication shops and fleet technicians.
