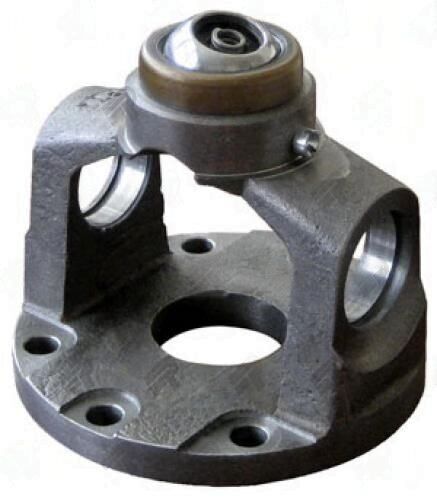

3102-392CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.386

When you’re working on a 2007 or later Jeep JK and notice a vibration or clunking noise during acceleration, it might be time to check the CV joints. The 3102-392CV CV flange yoke is specifically engineered to replace those worn-out joints, ensuring a smooth connection between the driveshaft and transfer case. This yoke features a 1310 Series design, which is critical for compatibility with the existing U-joint setup.

With a bolt circle diameter of 3.386 inches and a ball stud diameter of 0.5 inches, this yoke provides a robust connection that can handle the demands of off-road driving. The 6 bolt holes based on an 8 hole pattern ensure a secure fit, while the pilot diameter of 3.92 inches allows for proper alignment during installation. The C L to face measurement of 1.625 inches is also essential for achieving the correct driveshaft length.

Here are some key points to consider when installing the 3102-392CV:

• Ensure the spline engagement depth is correct to avoid premature wear.
• Check for proper phasing with the opposite yoke to prevent vibrations.
• Do not force spline entry; it should slide in smoothly.

By using the 3102-392CV CV flange yoke, you can restore the driveline performance of your Jeep JK and eliminate those annoying vibrations. This part is a straightforward solution for a common issue, making it a must-have for any serious fabricator or fleet tech.
