3102-362 – Flange Yokes – 1310 Series – Bolt Circle Dia 4.133″ – Bolt Hole Dia 0.410

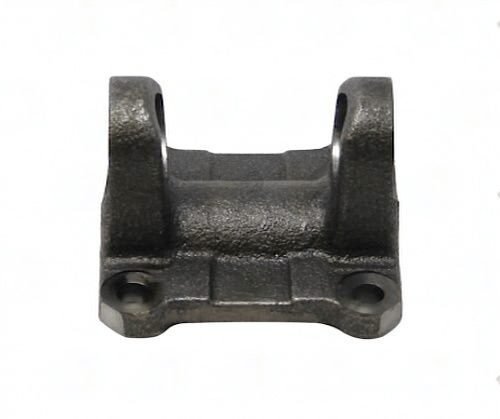

The 3102-362 Flange Yoke is engineered to provide a robust connection between the driveshaft and the powertrain or axle assembly. With a bolt circle diameter of 4.133 inches and a bolt hole diameter of 0.410 inches, this yoke is specifically designed for 1310 Series applications. The dimensions of this yoke ensure compatibility with the corresponding U-joint, allowing for efficient torque transfer and reliable performance.

One of the critical features of the 3102-362 is its pilot diameter of 2.362 inches, which helps in centering the yoke during installation and ensures a snug fit. The Cj to flat measurement of 1.685 inches is also crucial, as it defines the distance from the center of the yoke to the flat surface, impacting the overall alignment and phasing of the driveline components. Proper phasing is essential to minimize vibrations and ensure smooth operation.

• Verify spline engagement depth during installation.
• Ensure correct phasing with the opposite yoke to avoid driveline vibrations.
• Check bolt hole alignment before fastening to prevent misalignment.
• Inspect the yoke for wear or damage before installation.

In summary, the 3102-362 Flange Yoke is a vital component for any driveline setup requiring a 1310 Series connection. Its precise dimensions and engineering ensure that it meets the demands of both performance and reliability in various applications.
