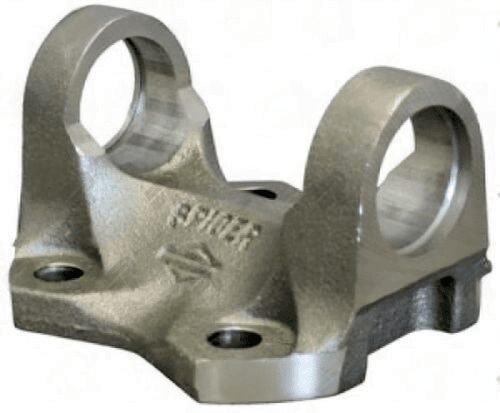

When you’re installing the 3102-36 Flange Yoke, it’s crucial to ensure a proper fit to maintain driveline integrity. This yoke connects your driveshaft to the transmission or differential, providing a reliable torque transfer interface. Key specifications include a 2.875″ bolt circle diameter, a 0.380″ bolt hole diameter, and a pilot diameter of 3.625″ OD. Designed specifically for 1310 Series applications, this yoke is compatible with U-joints that match the series geometry.
Before installation, double-check the spline count to ensure it matches your output shaft. A common mistake is mismatching the spline engagement depth, which can lead to premature wear or failure. Remember to verify the phasing with the opposite yoke to prevent vibrations during operation.
- Check spline count and engagement depth before installation.
- Ensure the yoke is properly phased with the opposite yoke.
- Use a torque wrench to tighten bolts to the manufacturer’s specifications.
- Inspect the mating surfaces for wear or damage.
- Confirm that the bolt circle diameter aligns with your existing setup.
With the 3102-36, you’re getting a yoke that not only fits but also enhances the performance of your driveline system. Proper installation is key to achieving optimal performance and longevity.
