3102-35 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.285″ – Pilot Dia 1.700, M

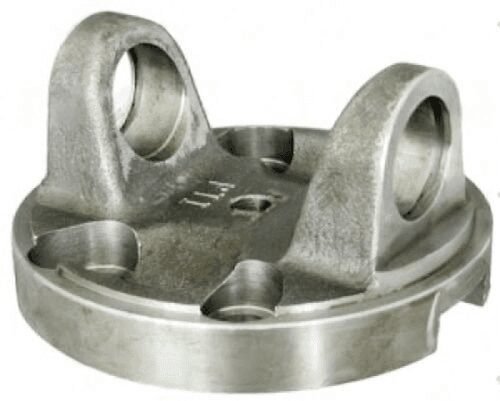

The 3102-35 Flange Yoke is a crucial component in the 1310 Series, designed to ensure reliable torque transfer in your driveline setup. This yoke connects the driveshaft to the transmission or differential, providing a secure and efficient link. With a bolt circle diameter of 3.285″ and a pilot diameter of 1.700″, it offers compatibility with a range of applications, ensuring precise alignment and stability.

What sets the 3102-35 apart is its specific dimensions and design. The 1310 Series yoke features four bolt holes, each with a diameter of 0.465″, allowing for robust attachment to companion flanges. The centerline to flat distance measures 1.500″, ensuring that it fits seamlessly into your existing setup. If you were to use a yoke from a different series, such as the 1350, the differences in cap diameter and cross width could lead to installation issues and potential failure.

• Series: 1310
• Bolt Circle Diameter: 3.285″
• Pilot Diameter: 1.700″, M
• Bolt Hole Diameter: 0.465″
• Centerline to Flat Distance: 1.500″

When installing the 3102-35, ensure proper spline engagement depth and verify phasing with the opposite yoke. This attention to detail will help prevent premature wear and ensure optimal performance. The 3102-35 is engineered for durability, making it a reliable choice for both fabrication shops and performance builders.
