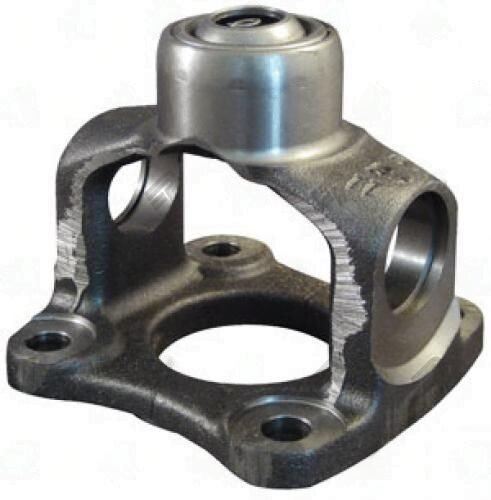

3102-275 – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.750sq

The 3102-275 Cv Flange Yoke is engineered specifically for the 1998-2004 Mercedes ML320 and ML350, connecting the front driveshaft to the transfer case. This yoke features a robust 1310 Series design, which is crucial for handling the torque loads typical of these vehicles while maintaining a lightweight profile. The dimensions of this yoke, including a ball stud diameter of 0.5 inches and a bolt circle diameter of 3.750 inches, have been optimized to ensure a secure fit and reliable performance under various driving conditions.

One of the key aspects of the 3102-275 is its ability to accommodate axial movement during suspension travel, thanks to its slip yoke design. This allows for smooth operation as the vehicle navigates uneven terrain, reducing the risk of binding or premature wear on the driveline components. The pilot diameter of 2.75 inches and a C L to face measurement of 1.5 inches further enhance compatibility with the vehicle’s existing setup.

• Ensure proper spline engagement depth during installation.
• Verify phasing with the opposite yoke to prevent vibrations.
• Check bolt hole diameter of 402 inches for correct fastener fit.

In summary, the 3102-275 Cv Flange Yoke is a critical component for maintaining the integrity and performance of the driveline in 1998-2004 Mercedes ML320 and ML350 models. Its design and specifications reflect a deep understanding of the mechanical demands placed on these vehicles, ensuring longevity and reliability.
