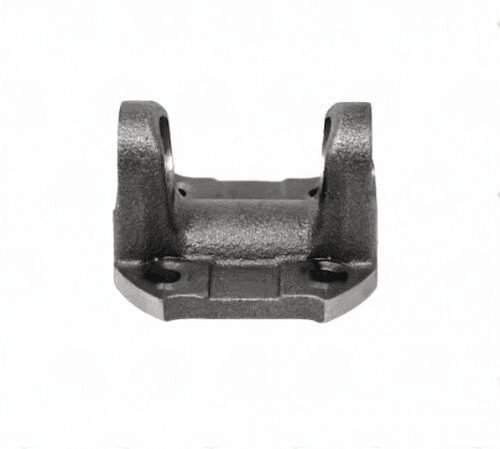

3102-253 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.118″ – Pilot Dia 2.250, M

When installing the 3102-253 Flange Yoke, start by confirming the spline engagement depth to ensure a proper fit with your driveshaft. This yoke is designed for 1310 Series applications, which means it’s critical to check the spline count and diameter against your existing setup. The bolt circle diameter measures 3.118″, so make sure your companion flange matches this dimension for a secure connection.

Pay attention to the pilot diameter of 2.250″. A mismatch here can lead to improper alignment and potential failure during operation. The bolt hole diameter is 0.338″, and with four bolt holes, you’ll want to ensure that your fasteners are compatible and torque them to the manufacturer’s specifications.

• Check spline count and diameter before installation.
• Verify the bolt circle diameter of 3.118″ matches your companion flange.
• Ensure the pilot diameter of 2.250″ fits snugly in the mating component.
• Use proper torque specifications for the four bolt holes.
• Inspect for any wear or damage on mating surfaces before assembly.

By following these steps, you can avoid common pitfalls and ensure a reliable connection in your driveline. The 3102-253 Flange Yoke is a solid choice for maintaining performance in your 1310 Series setup.
