3102-252 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.925″ – Pilot Dia 2.250, M

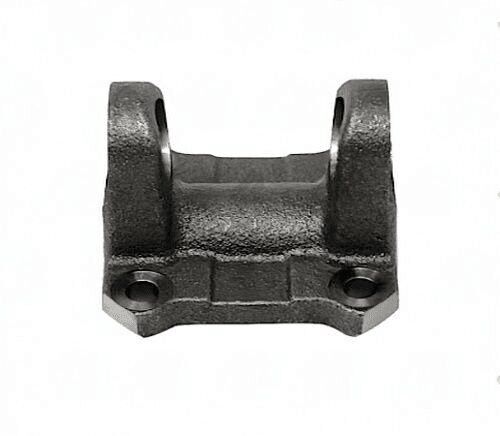

The 3102-252 Flange Yoke is engineered specifically for 1310 Series applications, making it a critical component in your driveline setup. This yoke connects the driveshaft to the transmission or differential, ensuring optimal power transfer. Key dimensions include a bolt circle diameter of 3.925 inches, a bolt hole diameter of 0.405 inches, and a pilot diameter of 2.250 inches. The yoke features four bolt holes for secure attachment, which is essential for maintaining alignment and stability under load.

It’s important to understand that while some yokes may look similar, the 3102-252’s specific dimensions set it apart. For instance, using a yoke with a different series can lead to compatibility issues with U-joints, as the cap diameter and cross width will not match. This mismatch can result in premature wear or even failure of the driveline components.

• Verify spline engagement depth during installation.
• Ensure proper phasing with the opposite yoke to avoid vibrations.
• Check the bolt hole diameter and spacing to match your application.
• Inspect the pilot diameter for a snug fit within the housing.

In summary, the 3102-252 Flange Yoke is a reliable choice for those working with 1310 Series setups. Its precise dimensions and robust design ensure that it will handle the demands of your application effectively.
