3102-251CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.75

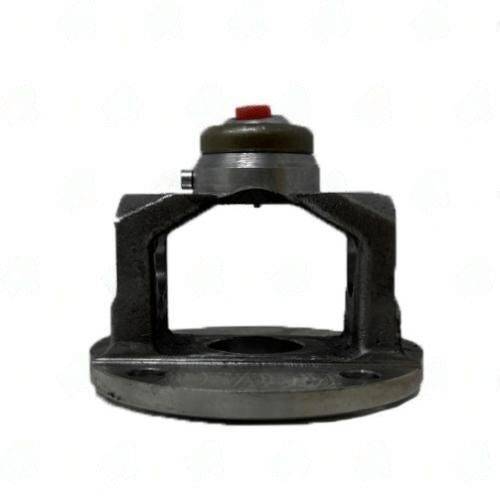

The 3102-251CV Cv Flange Yoke is a crucial component for any Land Rover/1310 conversion. This yoke connects the driveshaft to the transmission or differential, ensuring smooth power transfer. If you’re experiencing vibrations or clunking noises during acceleration, it could indicate a worn or damaged yoke. A failed yoke can lead to misalignment, causing excessive wear on other driveline components.

Key specifications of the 3102-251CV include:

• Ball Stud Diameter: 0.5″
• Bolt Circle Diameter: 3.75″
• Bolt Hole Diameter: 402″
• Pilot Diameter: 2.559″
• C L To Face: 1.625″

When installing the 3102-251CV, ensure proper spline engagement and verify that the yoke is phased correctly with the opposite yoke. A mismatch can lead to vibrations and premature failure. The 1310 Series designation is critical as it determines the cap diameter and cross width of the mating U-joint, which must be compatible for optimal performance.

In summary, if you’re dealing with driveline issues in a Land Rover, the 3102-251CV Cv Flange Yoke is the part you need to restore functionality and reliability to your vehicle’s drivetrain.
