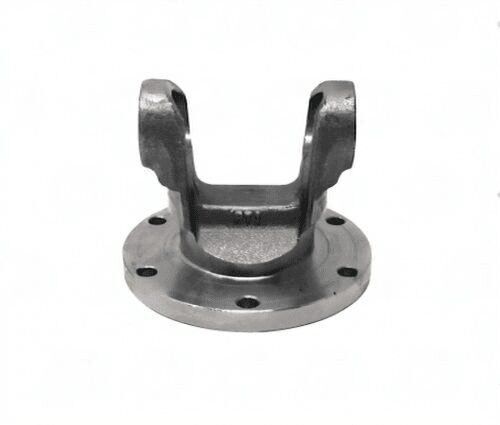

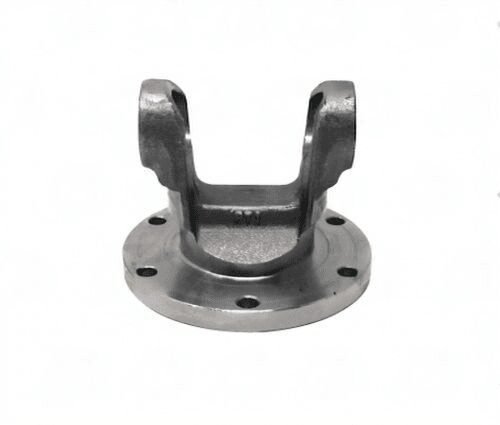

3102-250 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.850″ – Pilot Dia 2.250, M

3102-250 Flange Yoke is essential for connecting driveshafts to transmissions or differentials in various performance and heavy-duty applications. This yoke is designed for 1310 Series U-joints, ensuring a secure fit with the correct cap diameter and cross width. The specifications are critical: it features a Bolt Circle Diameter of 3.850″, a Bolt Hole Diameter of 0.320″, and a Pilot Diameter of 2.250″. With six bolt holes, this yoke provides a robust connection that can handle the stresses of high-performance drivetrains.

When installing the 3102-250, pay attention to the following:

• Ensure proper spline engagement depth for optimal performance.
• Verify phasing with the opposite yoke to maintain driveline balance.
• Never force spline entry; this can lead to premature wear or failure.
• Check the bolt hole alignment before tightening to avoid misalignment issues.
• Inspect mating components as a system to ensure compatibility.

In many applications, such as those found in performance vehicles, the 3102-250 plays a vital role in maintaining driveline integrity. Its design accommodates the unique demands of high-torque environments, making it a reliable choice for builders and technicians alike. Whether you’re working on a custom build or maintaining a fleet, the 3102-250 Flange Yoke is a critical component that ensures your driveline operates smoothly and efficiently.
