3102-237X – Flange Yokes – 1310 Series – Bolt Circle Dia 3.150″ – Pilot Dia 2.362, M

The 3102-237X Flange Yoke is engineered for 1310 Series applications, making it a critical component for connecting your driveshaft to the transmission or differential. The 3.150 inch bolt circle diameter ensures a secure fit, allowing for effective torque transfer between the driveshaft and the powertrain. This dimension is essential as it directly affects the stability and performance of your driveline setup.

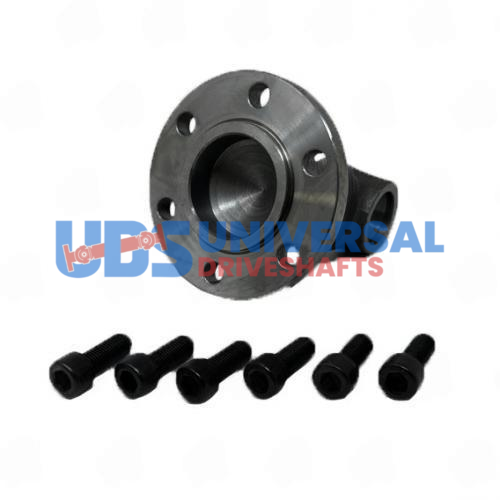

With a pilot diameter of 2.362 inches, this yoke fits snugly into the mating components, reducing the risk of misalignment and ensuring smooth operation. The six bolt holes, each with a diameter of 0.405 inches, provide ample fastening points for a robust connection, while the Cj to flat measurement of 2.671 inches ensures proper clearance and fitment.

When installing the 3102-237X, keep the following in mind:

• Verify spline engagement depth to ensure a proper fit.
• Check phasing with the opposite yoke to maintain balance.
• Do not force spline entry; ensure alignment for smooth installation.

This yoke is a reliable choice for those looking to maintain or upgrade their driveline components. The compatibility with 1310 Series U-joints means you can easily replace or service your existing setup without hassle. Trust the 3102-237X for your next project and experience the difference in performance.
