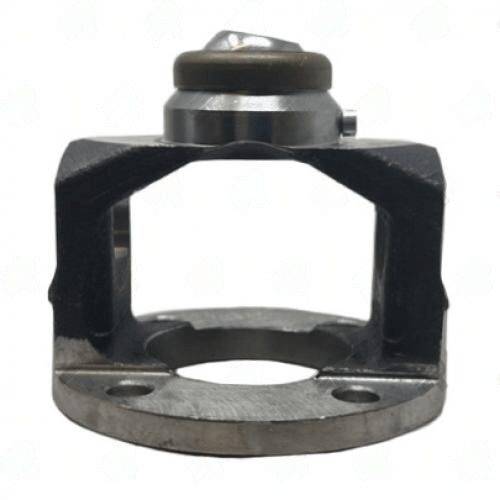

3102-231CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.125

When working with the 3102-231CV Cv Flange Yoke, it’s crucial to ensure compatibility with your Land Rover’s driveline. This yoke is specifically designed for 1310 Series applications, making it ideal for conversions that follow the same pattern as 2-2-329. Before installation, check the ball stud diameter of 0.5″ and the bolt circle diameter of 3.125″ to ensure a proper fit.

Common mistakes during installation often stem from overlooking the spline engagement depth. Always verify that the yoke fits snugly onto the output shaft without forcing it. The pilot diameter of 2.375″ and the C L to face measurement of 1.625″ are critical for achieving the right alignment and preventing premature wear.

• Check spline count and series compatibility before installation.
• Ensure the bolt hole diameter of 0.375″ matches your companion flange.
• Inspect the yoke for any signs of wear or damage before use.
• Use appropriate torque specifications when fastening.
• Verify phasing with the opposite yoke to avoid vibration issues.

With the 3102-231CV, you get a reliable connection between your driveshaft and the differential or transmission. This UDS brand yoke falls under the LD class, ensuring it meets the demands of your application. Proper installation and maintenance will extend the life of your driveline components.
