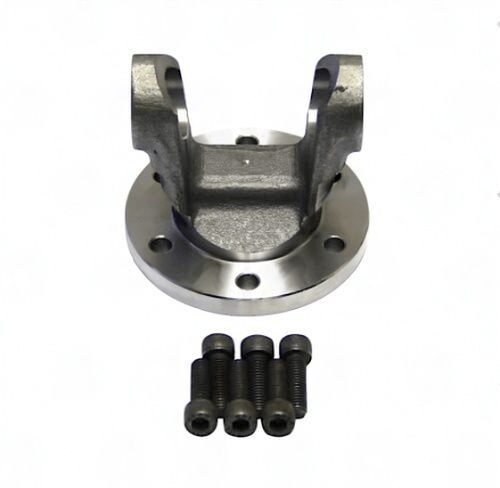

3102-220X – Flange Yokes – 1310 Series – Bolt Circle Dia 3.150″ – Pilot Dia 2.204, M

Before you install the 3102-220X flange yoke, double-check the bolt circle diameter of 3.150″ and the pilot diameter of 2.204″ to ensure compatibility with your application. This yoke is specifically designed for 1310 Series setups, which is critical for maintaining the correct U-joint cap diameter and cross width. Pay attention to the six bolt holes, each with a diameter of 0.331″, as misalignment can lead to installation issues.

When preparing for installation, verify the following:

• Confirm the bolt circle diameter matches your companion flange.
• Check that the pilot diameter fits snugly into the mating component.
• Ensure the Cj to flat measurement of 2.671″ aligns properly with your setup.
• Inspect the bolt holes for any wear or damage that could affect fastening.
• Never force the yoke onto the spline; ensure proper alignment first.

Using the 3102-220X flange yoke correctly will enhance the performance and reliability of your driveline. Remember, a well-installed yoke minimizes vibration and maximizes the lifespan of your components. Always refer to the manufacturer’s specifications for torque settings and installation procedures to achieve the best results.
