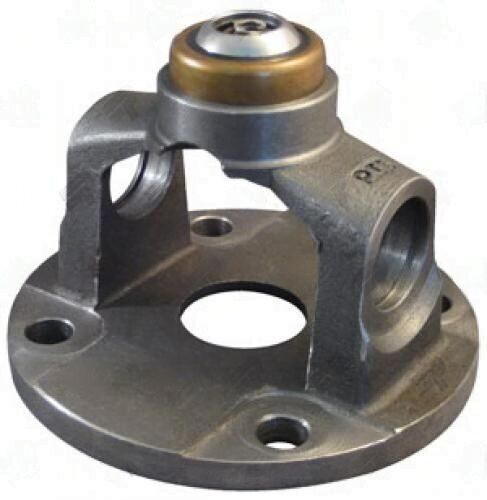

3102-212CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.937

The 3102-212CV Cv Flange Yoke is engineered specifically for the 03-06 Jeep Rubicon, ensuring a perfect fit with the factory flange. This yoke features a 1310 Series design, which is critical for maintaining the integrity of your driveline. The 0.5″ ball stud diameter and 3.937″ bolt circle diameter provide robust connections, while the 2.162″ pilot diameter ensures proper alignment during installation.

When comparing the 3102-212CV to other yokes, it’s essential to note that the 1310 Series is distinct in its dimensions. For instance, using a yoke from a different series, such as the 1350, can lead to improper fitment, as the cap diameter and cross width will not match the required U-joint specifications. This mismatch can result in premature wear or even failure of the driveline components.

Installation of the 3102-212CV requires careful attention to detail:

• Verify spline engagement depth before installation.
• Ensure proper phasing with the opposite yoke to avoid vibration issues.
• Double-check the pilot diameter against the factory specifications.

With a C L to face measurement of 1.625″ and a bolt hole diameter of 485″, the 3102-212CV is designed to handle the demands of your Jeep’s driveline. Remember to always consult the notes regarding fitment and compatibility, especially the reference to 3102-211CV, to ensure you have the right part for your application.
