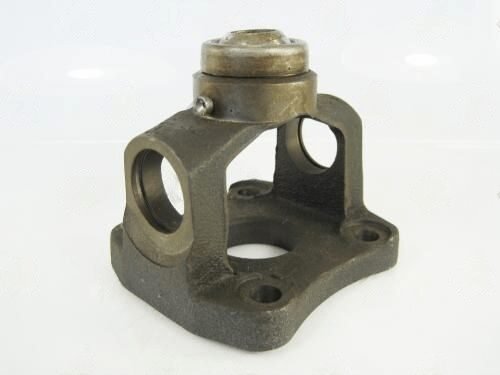

3102-186CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.34

The 3102-186CV Cv Flange Yoke is engineered specifically for Toyota/1310CV conversions, making it a vital component for ensuring proper driveline function. With a ball stud diameter of 0.5 inches, this yoke connects seamlessly to your driveline, providing the necessary stability and strength for high-performance applications.

The 1310 Series designation indicates compatibility with a specific U-joint size, ensuring that the yoke fits correctly with the mating components. The 3.34-inch bolt circle diameter and 0.404-inch bolt hole diameter allow for secure attachment to companion flanges, which is crucial for maintaining alignment and reducing wear over time. Additionally, the pilot diameter of 1.811 inches and a centerline to face measurement of 1.625 inches ensure that the yoke fits snugly, preventing any unwanted movement during operation.

When installing the 3102-186CV, keep the following in mind:

• Verify spline engagement depth for proper fit.
• Check phasing with the opposite yoke to avoid vibrations.
• Do not force spline entry; ensure alignment before installation.

This yoke is classified as LD by UDS, ensuring it meets the necessary load demands for your application. Whether you’re working on a fleet vehicle or a performance build, the 3102-186CV Cv Flange Yoke is a reliable choice for your driveline needs.
