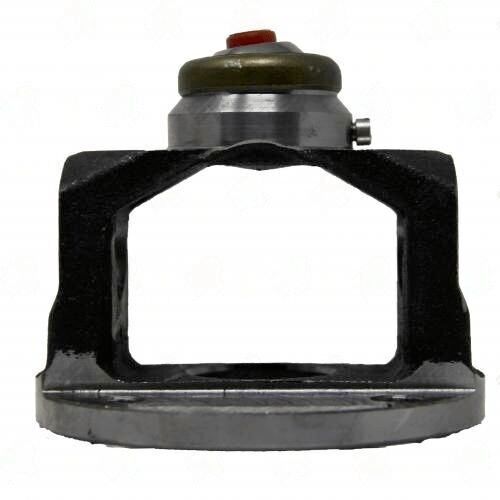

3102-183CV – Cv Flange Yokes – 1310 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 3.34

The 3102-183CV Cv Flange Yoke is engineered specifically for 1310 Series applications, making it a vital component for Toyota/1310CV conversions. This yoke connects the driveshaft to the transmission or differential, ensuring reliable power transfer and durability under various load conditions.

Key specifications include a ball stud diameter of 0.5 inches, a bolt circle diameter of 3.34 inches, and a pilot diameter of 1.811 inches. The design also features a C L to face measurement of 1.625 inches, which is critical for maintaining the correct alignment and phasing with the opposite yoke.

When installing the 3102-183CV, it’s essential to:

• Check spline engagement depth to ensure proper fit.
• Verify phasing with the opposite yoke to prevent vibrations.
• Never force spline entry, as this can lead to premature wear or failure.

This yoke is classified as LD (Light Duty), making it suitable for applications where weight savings are important without compromising strength. The square pattern design is specifically tailored for Toyota applications, ensuring compatibility and ease of installation. The 3102-183CV is a robust solution for those looking to upgrade or replace their existing yoke in a 1310 Series setup.
