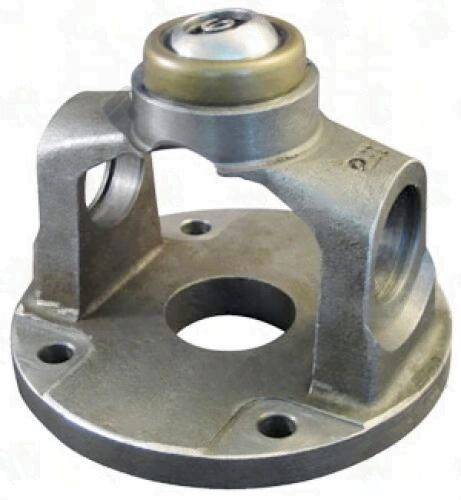

The 3102-181CV Cv Flange Yoke is a critical component for those working on Toyota/1310CV conversions. This yoke connects the driveshaft to the transmission or differential, ensuring smooth power transfer. With its 1310 Series designation, it features a specific spline count and dimensions that set it apart from other yokes.
One of the standout features of the 3102-181CV is its compatibility with the 1310 Series U-joint. This means it has a cap diameter and cross width that align perfectly with other components in this series. Using a yoke from a different series, such as a 1350, could lead to improper fitment and potential failure. The 3102-181CV also boasts a bolt circle diameter of 3.575 inches and a pilot diameter of 1.811 inches, making it suitable for various applications.
- Ball Stud Diameter: 0.5 inches
- Center Line to Face: 1.625 inches
- Class: LD
- Installation Tip: Always check spline engagement depth before installation.
- Verify phasing with the opposite yoke to prevent vibration issues.
When installing the 3102-181CV, remember that it is designed for axial movement, allowing for suspension travel without binding. This feature is essential for maintaining the integrity of your driveline setup. Overall, the 3102-181CV Cv Flange Yoke is an indispensable part for anyone looking to achieve reliable performance in their Toyota/1310CV conversion.
