Sale!

Pasted 143 1

Click to enlarge

3102-1799

SKU: 3102-1799

$37.12

2 in stock

12 People watching this product now!

Description

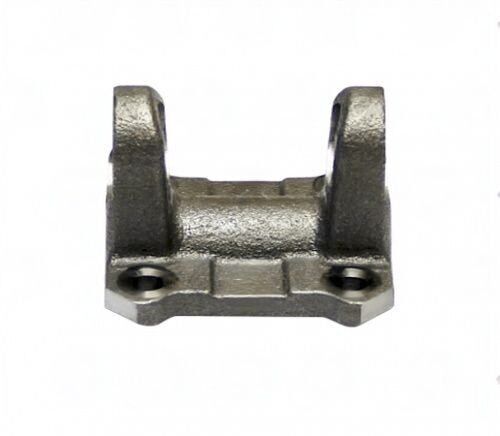

The 3102-1799 Flange Yoke is a 1310 series component designed for Isuzu applications with a square pattern. It features a 3.750-inch bolt circle diameter and four bolt holes, each 0.400 inches in diameter. The pilot diameter is 2.559 inches male, and the distance from the centerline of the joint to the flat is 1.750 inches. This yoke ensures a precise fit and durability for various driveshaft configurations.

Additional information

Bolt circle dia	3.750
Bolt hole dia	0.400
Cj to flat	1.750
Partn number	3102-1799
Pilot dia	2.559 , M
Series	1310
Bolt Holes	4

More from the same Category

3102-35

$54.51

Bolt circle dia	3.285
Bolt hole dia	0.465
Cj to flat	1.500
Partn number	3102-35
Pilot dia	1.700 , M
Series	1310
Bolt Holes	4

Pasted 129 1 1 1

3102-236X

$92.53

Bolt circle dia	3.150
Bolt hole dia	0.331
Cj to flat	2.671
Partn number	3102-236X
Pilot dia	2.362 , M
Series	1310
Bolt Holes	6

3102-362

$52.97

Bolt circle dia	4.133
Bolt hole dia	0.410
Cj to flat	1.685
Partn number	3102-362
Pilot dia	2.362 , M
Series	1310
Bolt Holes	4

3102-237X

$92.53

Bolt circle dia	3.150
Bolt hole dia	0.405
Cj to flat	2.671
Partn number	3102-237X
Pilot dia	2.362 , M
Series	1310
Bolt Holes	6

3102-391

$46.27

Bolt circle dia	3.386
Bolt hole dia	0.415
Cj to flat	2.592
Partn number	3102-391
Pilot dia	3.937 , OD
Series	1310
Bolt Holes	6

Pasted 130 1 1 1

3102-232

$69.49

Bolt circle dia	3.346
Bolt hole dia	0.406
Cj to flat	1.625
Partn number	3102-232
Pilot dia	2.375 , M
Series	1310
Bolt Holes	4

3102-21

$43.87

Bolt circle dia	3.200
Bolt hole dia	0.395
Cj to flat	1.781
Partn number	3102-21
Pilot dia	1.968 , M
Series	1310
Bolt Holes	4

3102-270

$57.39

Bolt circle dia	3.307
Bolt hole dia	0.406
Cj to flat	1.750
Partn number	3102-270
Pilot dia	1.850 , M
Series	1310
Bolt Holes	4

1202-181

$50.23

Pilot dia	1.811
Partn number	1202-181
Bolt Holes	4
Bolt hole dia	0.400
Series	1251

3102-188

$65.51

Bolt circle dia	3.078
Bolt hole dia	0.402
Cj to flat	1.687
Partn number	3102-188
Pilot dia	1.811 , M
Series	1310
Bolt Holes	4

3102-220X

$91.77

Bolt circle dia	3.150
Bolt hole dia	0.331
Cj to flat	2.671
Partn number	3102-220X
Pilot dia	2.204 , M
Series	1310
Bolt Holes	6

6fd1 2 2 899 1 DSP 0 1 228x228 1

3102-39 | 2-2-899-1 , 1310 Series Nissan / Subaru Pilot: 57mm male , 2.250 Inch

$22.14

Bolt circle dia	2.750
Bolt hole dia	0.315
Cj to flat	1.625
Partn number	3102-39
Pilot dia	2.245 , M
Series	1310
Bolt Holes	4
Brand	UDS
Notes	Mostly used on Nissan

3102-271

$57.39

Bolt circle dia	3.307
Bolt hole dia	0.412
Cj to flat	1.750
Partn number	3102-271
Pilot dia	1.850 , M
Series	1310
Bolt Holes	4

3102-185 Flange Yoke 1310 , Toyota with Bolt Circle Diameter: 3.661, Pilot: 1.811 Square Pattern

$37.92

Bolt circle dia	3.661
Bolt hole dia	0.445
Cj to flat	1.634
Partn number	3102-185
Pilot dia	1.811 , M
Series	1310
Bolt Holes	4
