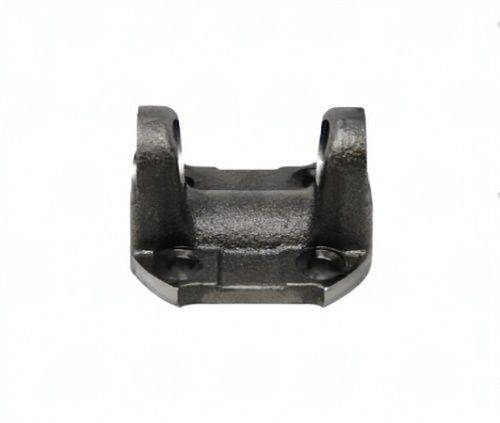

3102-175 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.120″ – Bolt Hole Dia 0.405

SKU: 3102-175

$46.73

1 in stock

17 People watching this product now!

Description

The 3102-175 Flange Yoke is a 1310 series component designed for Suzuki applications. It features a 1.06 x 3.22-inch flange with SAE 1.77-inch dimensions, and four 0.31-inch bolt holes arranged in a 2.20 x 2.20-inch pattern. The yoke has a height of 2.24 inches and weighs 1.55 lbs. Engineered for durability and precision, this yoke ensures a reliable fit for Suzuki driveshafts.

Additional information

Bolt circle dia	3.120
Bolt hole dia	0.405
Cj to flat	1.750
Partn number	3102-175
Pilot dia	1.772 , M
Series	1310
Bolt Holes	4

More from the same Category

6fd1 2 2 899 1 DSP 0 1 228x228 1

3102-39 | 2-2-899-1 , 1310 Series Nissan / Subaru Pilot: 57mm male , 2.250 Inch

$22.14

Bolt circle dia	2.750
Bolt hole dia	0.315
Cj to flat	1.625
Partn number	3102-39
Pilot dia	2.245 , M
Series	1310
Bolt Holes	4
Brand	UDS
Notes	Mostly used on Nissan

3102-191 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.200″ – Pilot Dia 1.968, M

$45.85

Bolt circle dia	3.200
Bolt hole dia	0.325
Cj to flat	1.750
Partn number	3102-191
Pilot dia	1.968 , M
Series	1310
Bolt Holes	4

3102-21 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.200″ – Bolt Hole Dia 0.395

$43.87

Bolt circle dia	3.200
Bolt hole dia	0.395
Cj to flat	1.781
Partn number	3102-21
Pilot dia	1.968 , M
Series	1310
Bolt Holes	4

3R02-21 – Flange Yokes – 3R Series – Pilot Dia 3.125-F – Bolt Circle Dia 4.250

$50.93

Remaining stock	<10
Partn number	3R02-21
Series	3R
Pilot dia	3.125-F
Bolt Holes	4
Bolt hole dia	0.455
Notes	SAGINAW – NON CV FLANGE
Bolt circle dia	4.250
Cj to flat	1.687

3102-192 – Flange Yokes – 1310 Series – Bolt Circle Dia 2.980″ – Pilot Dia 1.968, M

$41.86

Bolt circle dia	2.980
Bolt hole dia	0.325
Cj to flat	1.750
Partn number	3102-192
Pilot dia	1.968 , M
Series	1310
Bolt Holes	4

Pasted 129 1 1 1

3102-236X – Flange Yokes – 1310 Series – Bolt Circle Dia 3.150″ – Pilot Dia 2.362, M

$92.53

Bolt circle dia	3.150
Bolt hole dia	0.331
Cj to flat	2.671
Partn number	3102-236X
Pilot dia	2.362 , M
Series	1310
Bolt Holes	6

3102-220X – Flange Yokes – 1310 Series – Bolt Circle Dia 3.150″ – Pilot Dia 2.204, M

$91.77

Bolt circle dia	3.150
Bolt hole dia	0.331
Cj to flat	2.671
Partn number	3102-220X
Pilot dia	2.204 , M
Series	1310
Bolt Holes	6

3102-362 – Flange Yokes – 1310 Series – Bolt Circle Dia 4.133″ – Bolt Hole Dia 0.410

$52.97

Bolt circle dia	4.133
Bolt hole dia	0.410
Cj to flat	1.685
Partn number	3102-362
Pilot dia	2.362 , M
Series	1310
Bolt Holes	4

3102-217 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.937″ – Pilot Dia 2.162, F

$25.60

Bolt circle dia	3.937
Bolt hole dia	0.489
Cj to flat	2.082
Partn number	3102-217
Pilot dia	2.162 , F
Series	1310
Bolt Holes	4

3102-237X – Flange Yokes – 1310 Series – Bolt Circle Dia 3.150″ – Pilot Dia 2.362, M

$92.53

Bolt circle dia	3.150
Bolt hole dia	0.405
Cj to flat	2.671
Partn number	3102-237X
Pilot dia	2.362 , M
Series	1310
Bolt Holes	6

3102-1799 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.750″ – Bolt Hole Dia 0.400

$37.12

Bolt circle dia	3.750
Bolt hole dia	0.400
Cj to flat	1.750
Partn number	3102-1799
Pilot dia	2.559 , M
Series	1310
Bolt Holes	4

3102-185 Flange Yoke 1310 , Toyota with Bolt Circle Diameter: 3.661, Pilot: 1.811 Square Pattern

$37.92

Bolt circle dia	3.661
Bolt hole dia	0.445
Cj to flat	1.634
Partn number	3102-185
Pilot dia	1.811 , M
Series	1310
Bolt Holes	4

3102-37 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.750″ – Bolt Hole Dia 0.481

$37.28

Bolt circle dia	3.750
Bolt hole dia	0.481
Cj to flat	1.750
Partn number	3102-37
Pilot dia	2.559 , M
Series	1310
Bolt Holes	4

3102-270 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.307″ – Pilot Dia 1.850, M

$57.39

Bolt circle dia	3.307
Bolt hole dia	0.406
Cj to flat	1.750
Partn number	3102-270
Pilot dia	1.850 , M
Series	1310
Bolt Holes	4
