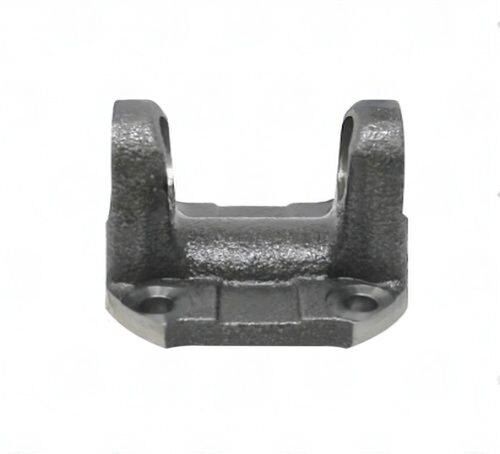

3102-174 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.500″ – Pilot Dia 1.772, M

When you're ready to install the 3102-174 Flange Yoke, it's crucial to ensure compatibility with your Honda driveshaft. This yoke is part of the 1310 Series, which means it fits specific U-joint dimensions and applications. Start by checking the spline count and ensuring it matches your driveshaft's output. A common mistake is mismatching spline sizes, which can lead to installation headaches. This yoke features a bolt circle diameter of 3.500 inches and has four bolt holes, each measuring 0.409 inches in diameter. Make sure to use the correct fasteners and torque them to the manufacturer's specifications for a secure fit. The pilot diameter is 1.772 inches, and the distance from the centerline of the joint to the flat is 1.750 inches, so double-check these measurements to avoid any fitment issues. Here are some key installation tips:

• Verify spline engagement depth before installation.
• Ensure proper phasing with the opposite yoke to prevent vibrations.
• Check that the bolt holes align correctly with your companion flange.
• Use a torque wrench to tighten fasteners to specification.

With the right preparation, the 3102-174 Flange Yoke will deliver a reliable connection for your Honda application, ensuring smooth operation and longevity.
